Automatic SEM

Phenom SEM

Automatic SEM

FEG Desktop SEM CeB6 Desktop SEM ParticleX automatic SEM Automatic SEM

model

Phenom GSR

Maximum SEM magnification：200,000x
SEM resolution：≤ 8 nm
Completely shockproof

Automatic SEM

Product Features

CeB6 filament
Large chamber sample holder
Not gold coating
Fully automatic motor

Automatic SEM

CeB6 filament

Phenom uses CeB6 filament with a work function of 2.5 eV. Its brightness is 10 times that of tungsten filament. The chromatic aberration of the emitted electrons is small, providing you with higher quality images. Its service life is up to 1500 hours, which is 10 times that of tungsten filament. It can be used normally for 2-3 years without replacing the filament, which saves you the trouble of frequently replacing the filament and ensures the progress of the work.

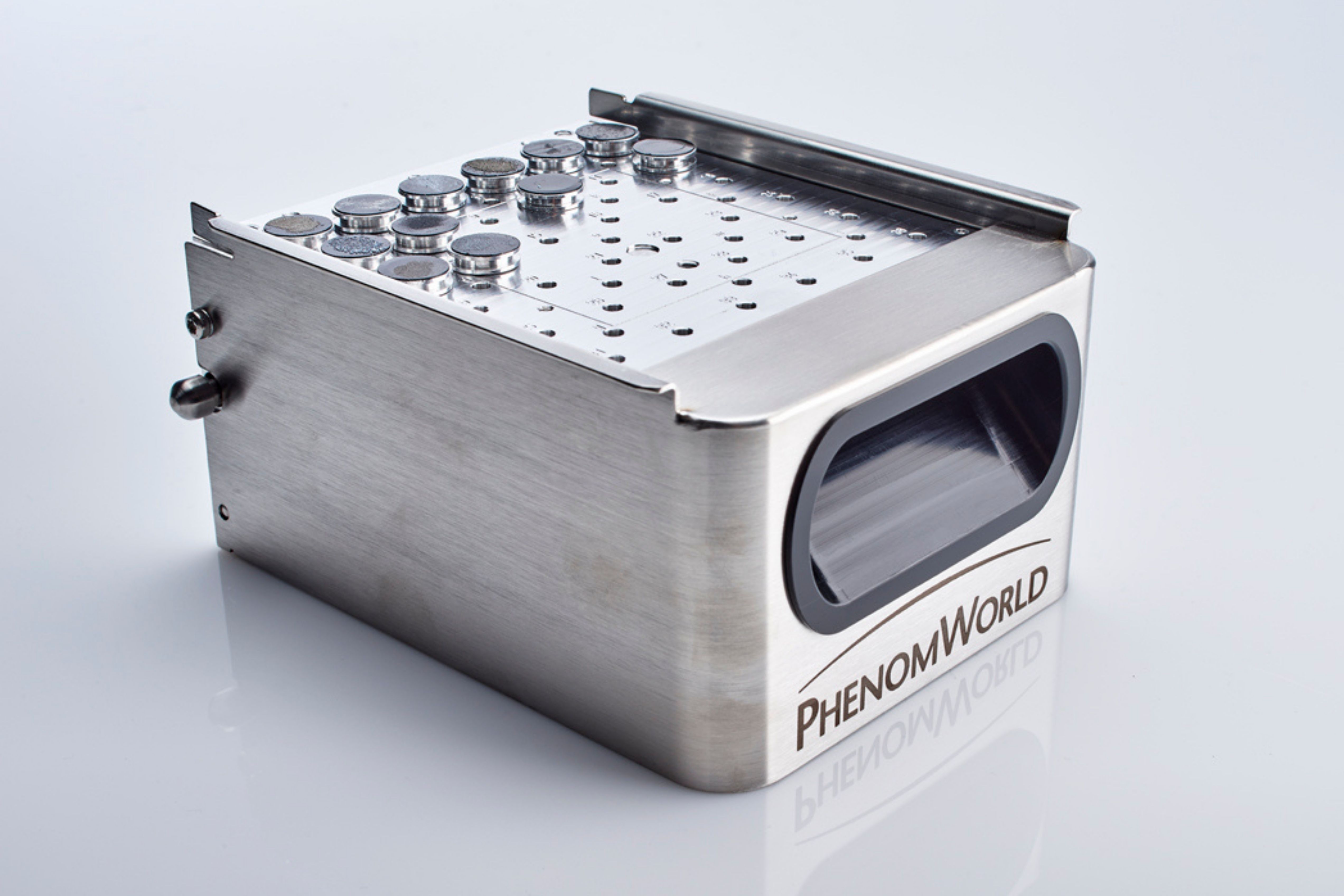

Large chamber sample holder

The Phenom XL G2 standard sample holder is compact and can analyze samples up to 100 x 100 mm, and can accommodate 36 samples simultaneously. Patented sample loading technology minimizes vacuuming time, making the throughput of the Phenom XL G2 several levels higher than similar SEMs.

Not gold coating

Phenom uses low vacuum technology. The emitted electrons collide with air molecules to generate positive ions. The positive ions neutralize the electrons accumulated on the sample surface, effectively suppressing the generation of charging effects, and directly observing various non-conductive samples. By using the reduces the charge sample holder, the magnification of initial charging can be increased by about 8 times, meanwhile it doesn't affect the filament life.

Fully automatic motor

Phenom is equipped with a fully automatic computer-controlled motor sample holder. You can easily switch by clicking any point on the screen with the mouse and move to the selected position instantly.
