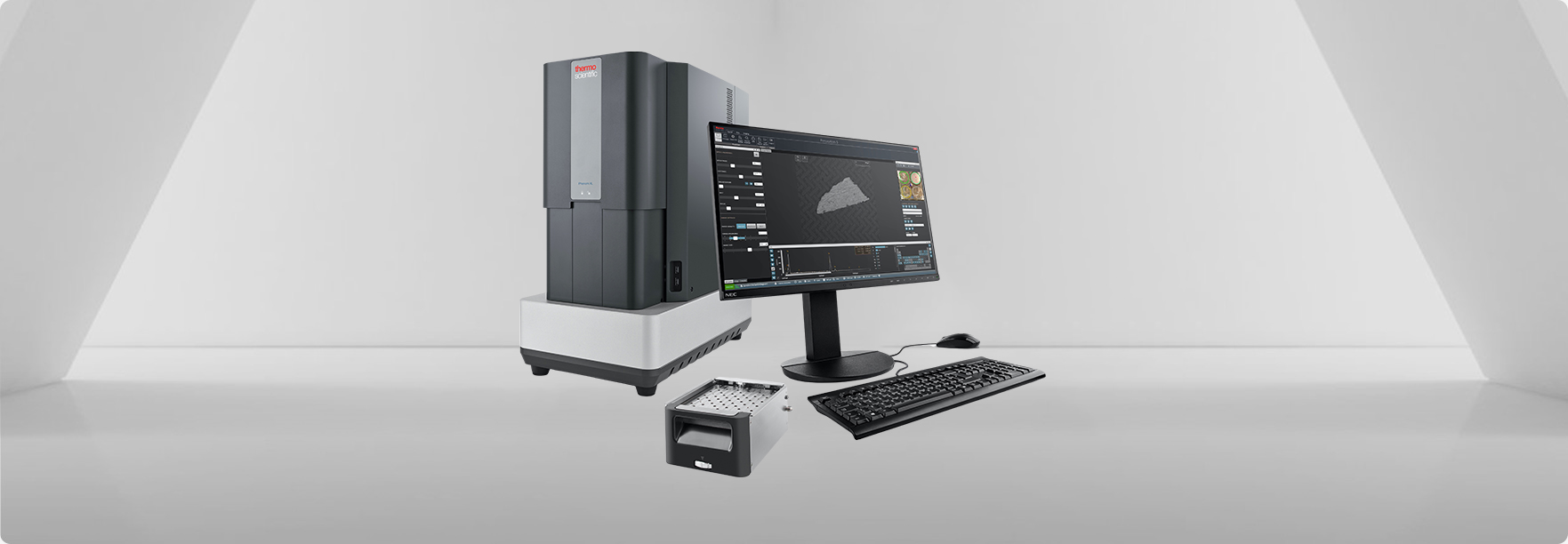

ParticleX Battery

Product Introduction

The Phenom ParticleX Battery Desktop SEM’s ease-of-use and automation allow you to offload sample analysis from other SEMs in your laboratory.

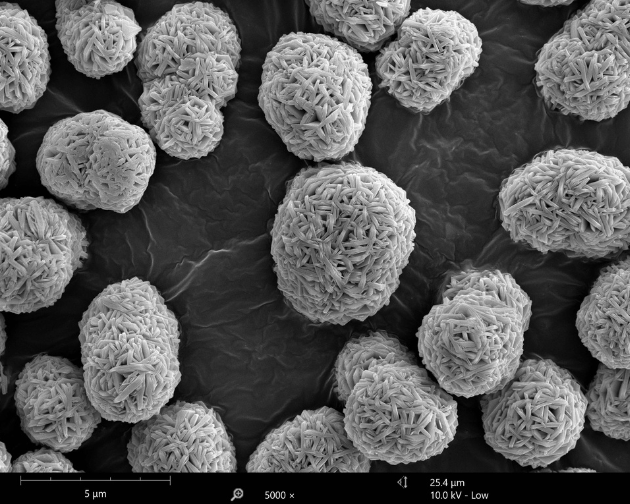

The NCM powder (nickel, cobalt, manganese or Ni-Co-Mn) is a very important ingredient for batteries. The most common ratio is 8:1:1 (8 parts Ni, 1 part Co, and 1 part Mn). The particle size and exact chemistry of the powder influence the final battery performance, but even more important are the contaminations in the powder, as a single metal particle can have disastrous results in the battery. Finding these contaminations and classifying them is like trying to find a needle in a haystack.

ParticleX Battery

Specification

Product model	ParticleX Battery	ParticleX Steel	ParticleX TC
Product images
Full name of the product	ParticleX Battery	ParticleX Steel	ParticleX TC
Light optical	3 - 19 X	3 - 19 X	3 - 19 X
Electron optical	200,000 X	200,000 X	200,000 X
Resolution	≤ 8 nm	≤ 8 nm	≤ 8 nm
Electron source	Long lifetime thermionic source (CeB6)	Long lifetime thermionic source (CeB6)	Long lifetime thermionic source (CeB6)
Color navigation camera	Color	Color	Color
Acceleration voltages	4.8 kV - 20.5 kV	4.8 kV - 20.5 kV	4.8 kV - 20.5 kV
Vacuum Mode	Integrated low-/medium-/high-vacuum modes standard	Integrated low-/medium-/high-vacuum modes standard	Integrated low-/medium-/high-vacuum modes standard
Detector	BSD SED（Optional） EDS	BSD SED（Optional） EDS	BSD SED（选配） EDS
Fully automatic function	Fully automatic analysis of battery	Fully automatic analysis of steel	Fully automatic analysis of automobile parts

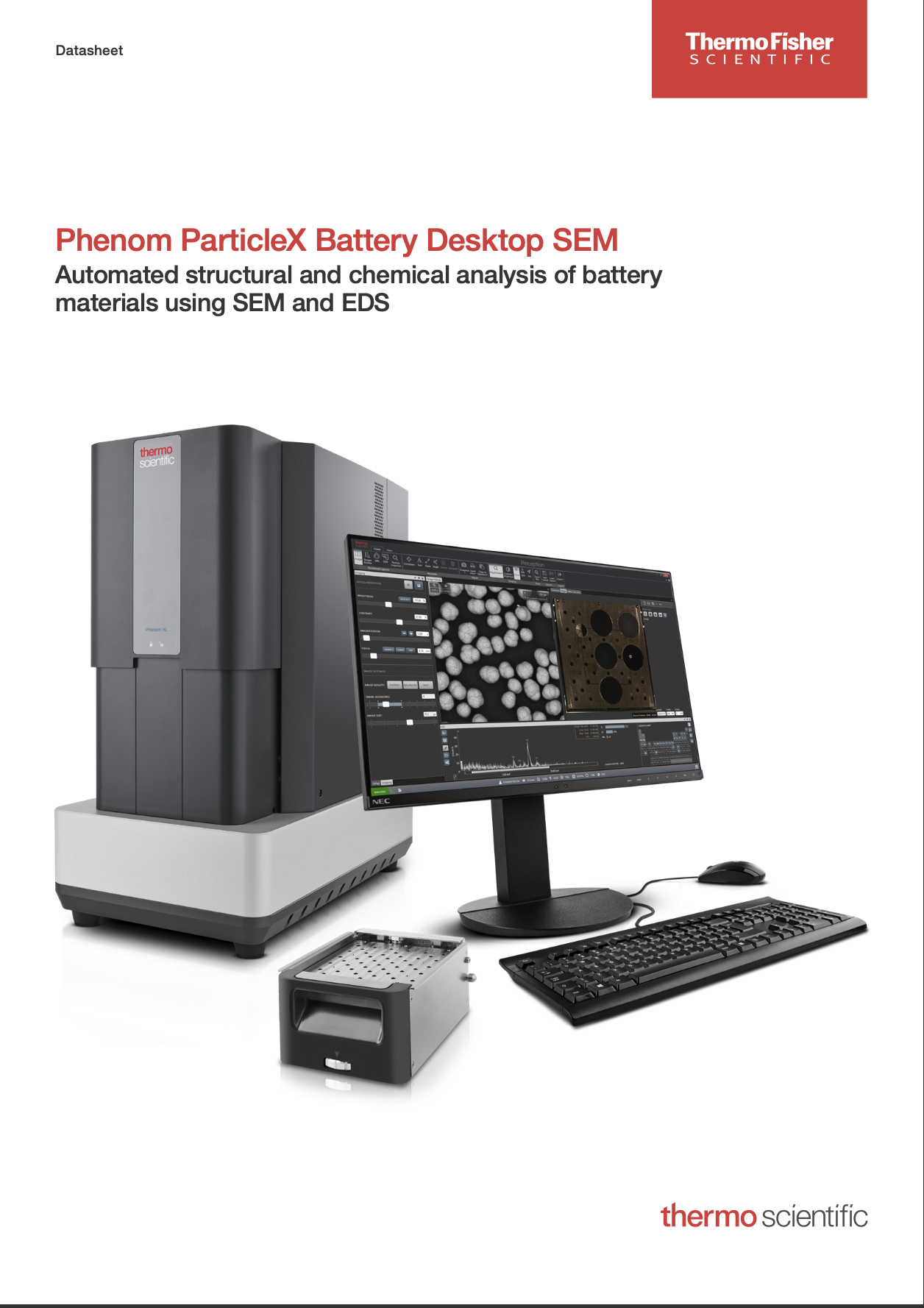

Download Center	Product Brochure	Product Brochure	Product Brochure

ParticleX Battery

Practical Features

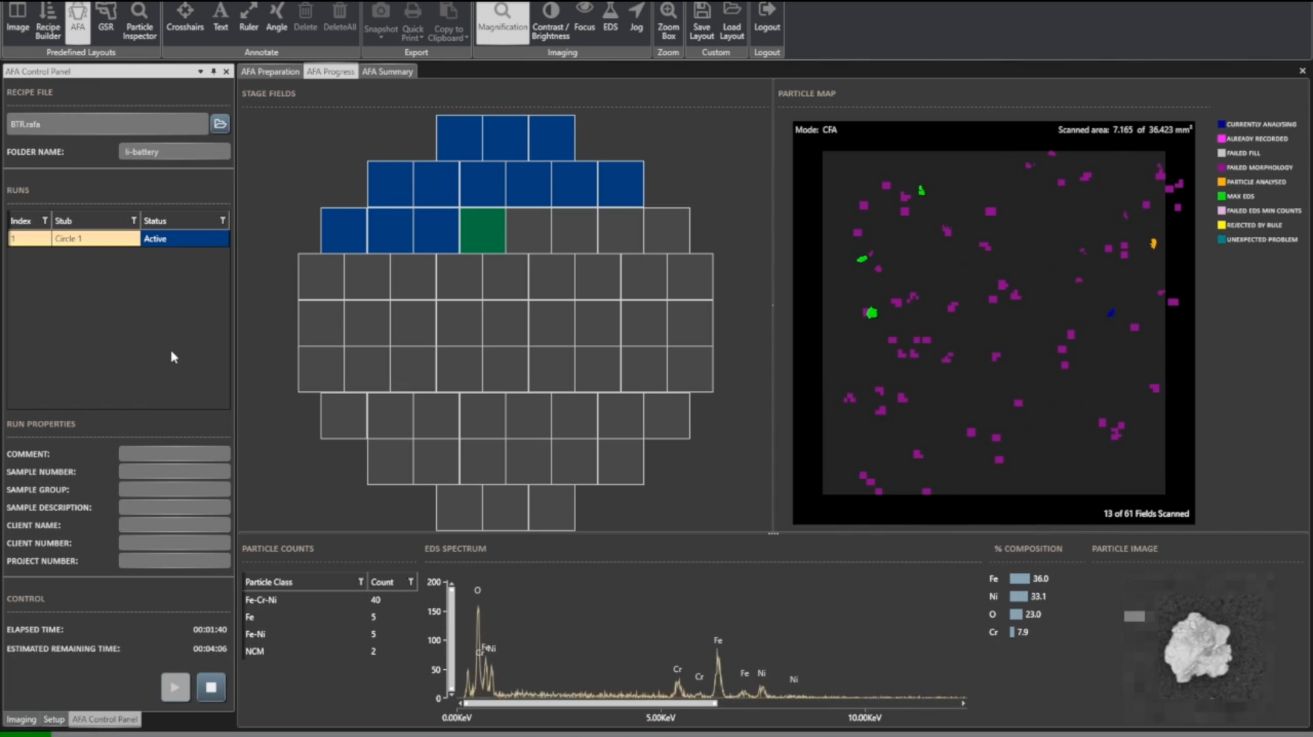

Automatic impurity particle identification

Automatic high-resolution image acquisition

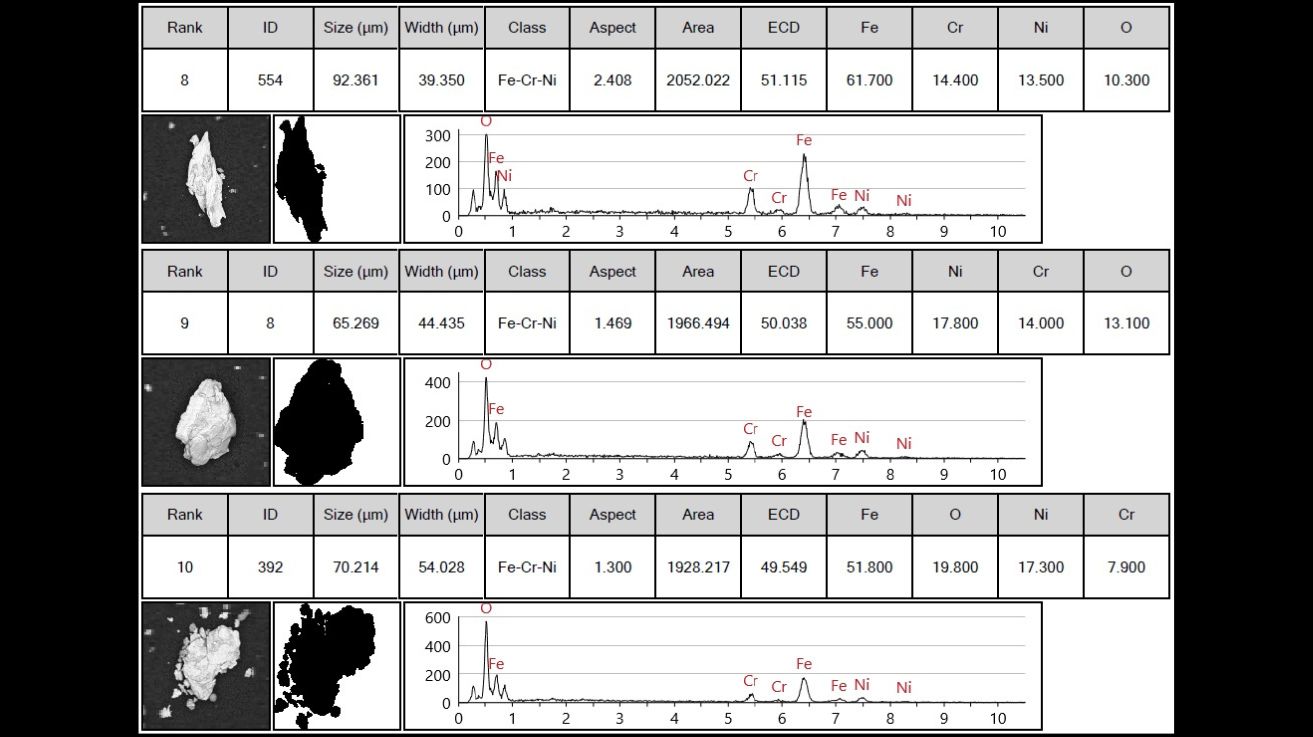

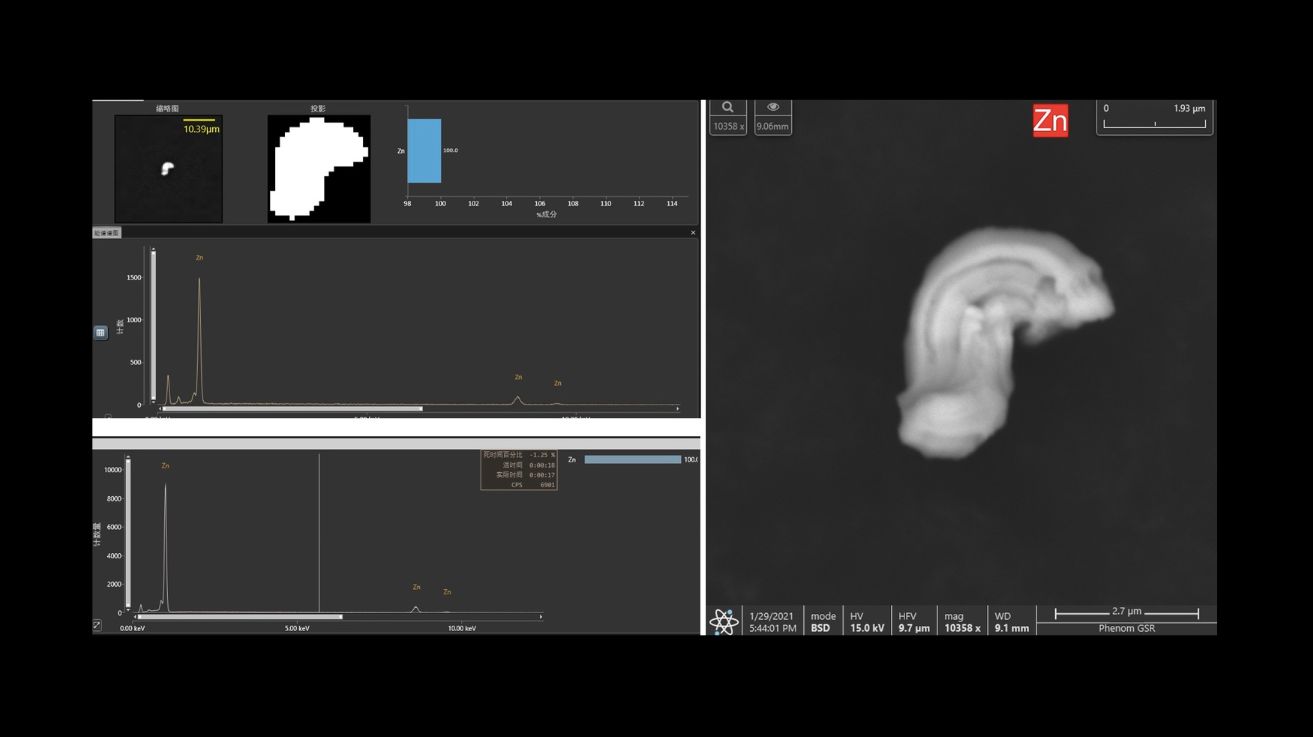

Automatic EDS component analysis

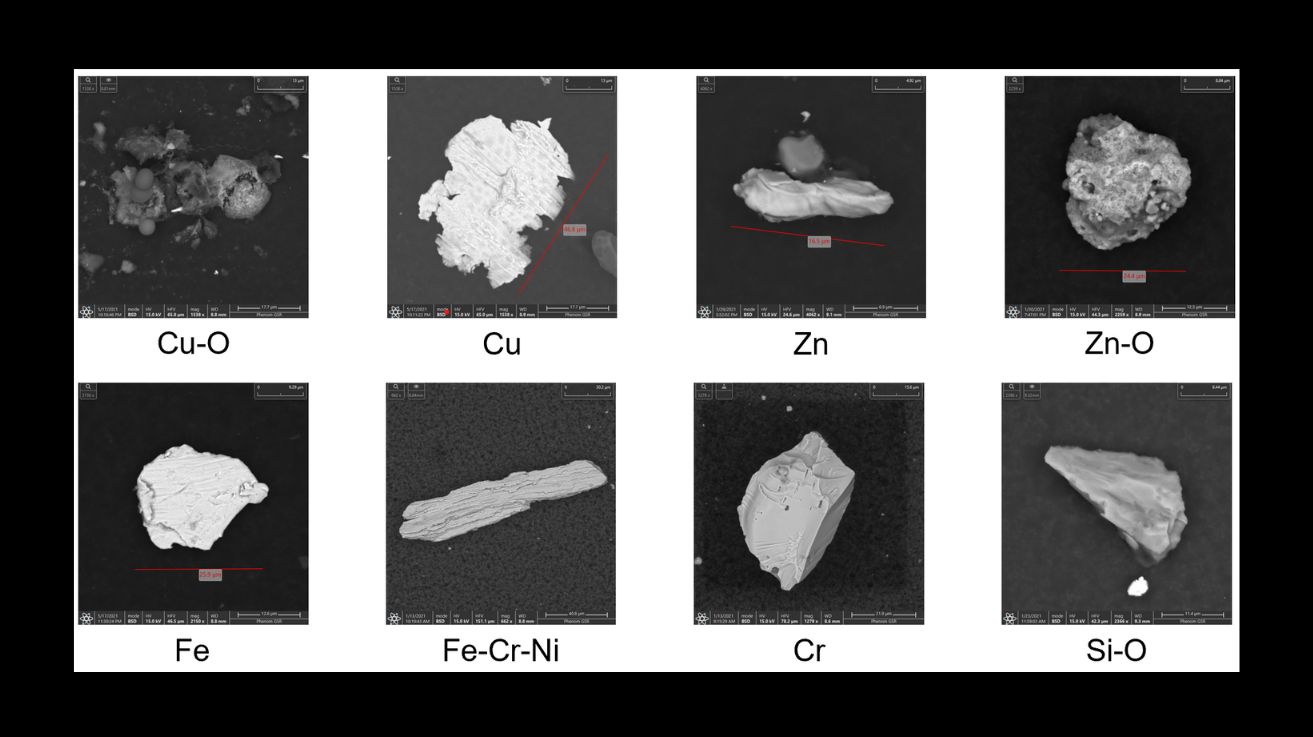

Automatic impurity particle classification

ParticleX Battery

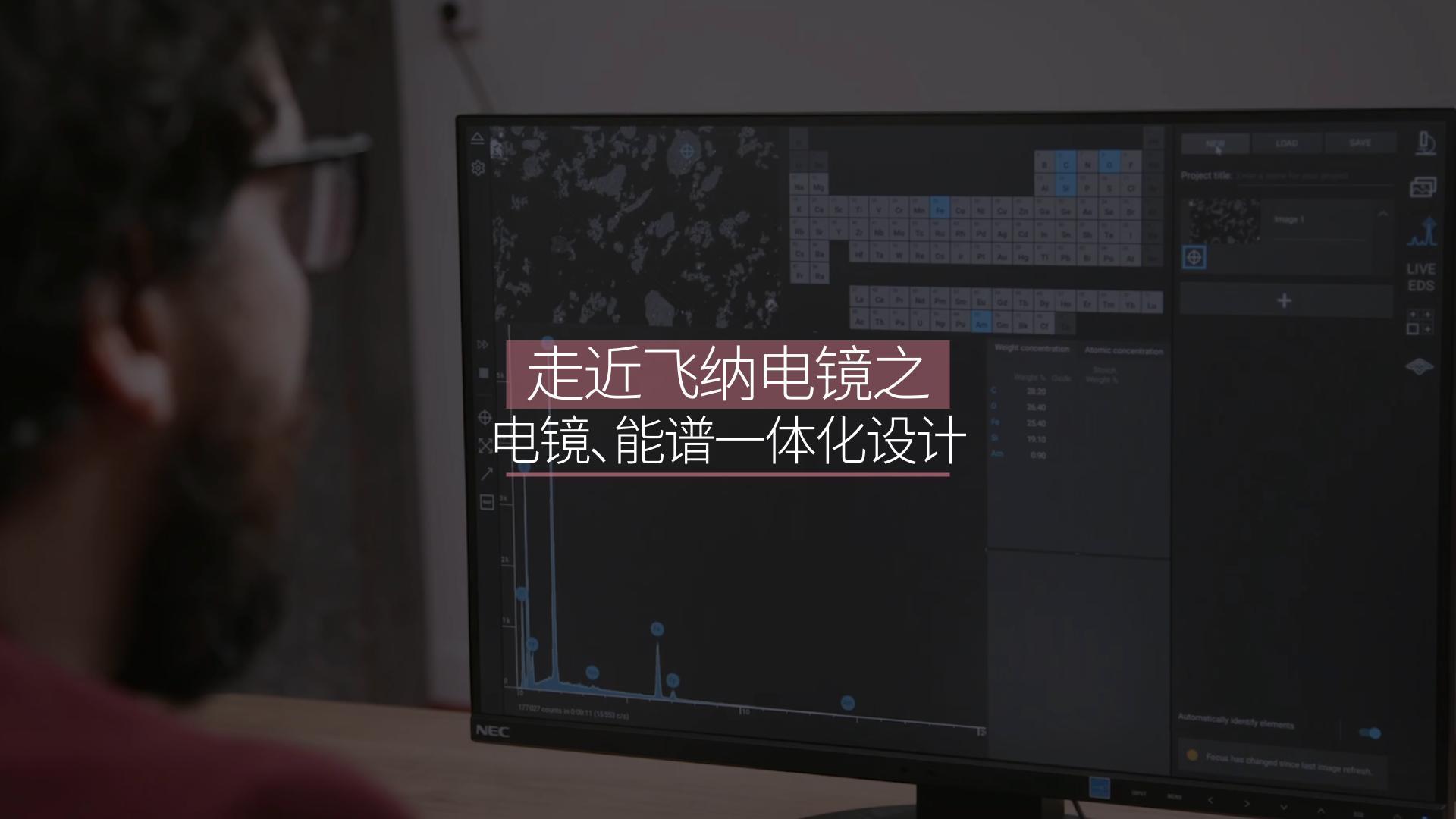

Video Introduction

Completely shockproof
Convenient parameter settings
Easy to operate
Color navigation camera
Loading samples
Desktop SEM with EDS
