CeB6 Desktop SEM - Phenom SEM - Products

CeB6 Desktop SEM

Phenom SEM

CeB6 Desktop SEM

FEG Desktop SEM CeB6 Desktop SEM ParticleX automatic SEM Automatic SEM

model

Phenom XL G2 Desktop SEM Phenom ProX Desktop SEM with EDS Phenom Pro G6 Desktop SEM Phenom Pure G6 Desktop SEM

Phenom XL G2

Phenom XL G2 Desktop SEM

Maximum SEM magnification：200,000x
SEM resolution：≤ 8nm
Large samples up to 100 x 100 mm

Phenom ProX G6

Phenom ProX Desktop SEM with EDS

Maximum SEM magnification：350,000x
SEM resolution：≤ 6nm
Completely shockproof

Phenom Pro

Phenom Pro G6 Desktop SEM

Maximum SEM magnification：350,000x
SEM resolution：≤ 6nm
Completely shockproof

Phenom Pure

Phenom Pure G6 Desktop SEM

Maximum SEM magnification：175,000x
SEM resolution：≤ 10nm
15-second vacuuming

CeB6 Desktop SEM

Product Features

CeB6 filament
Easy Operation
Not gold coating
SEM with EDS

CeB6 Desktop SEM

CeB6 filament

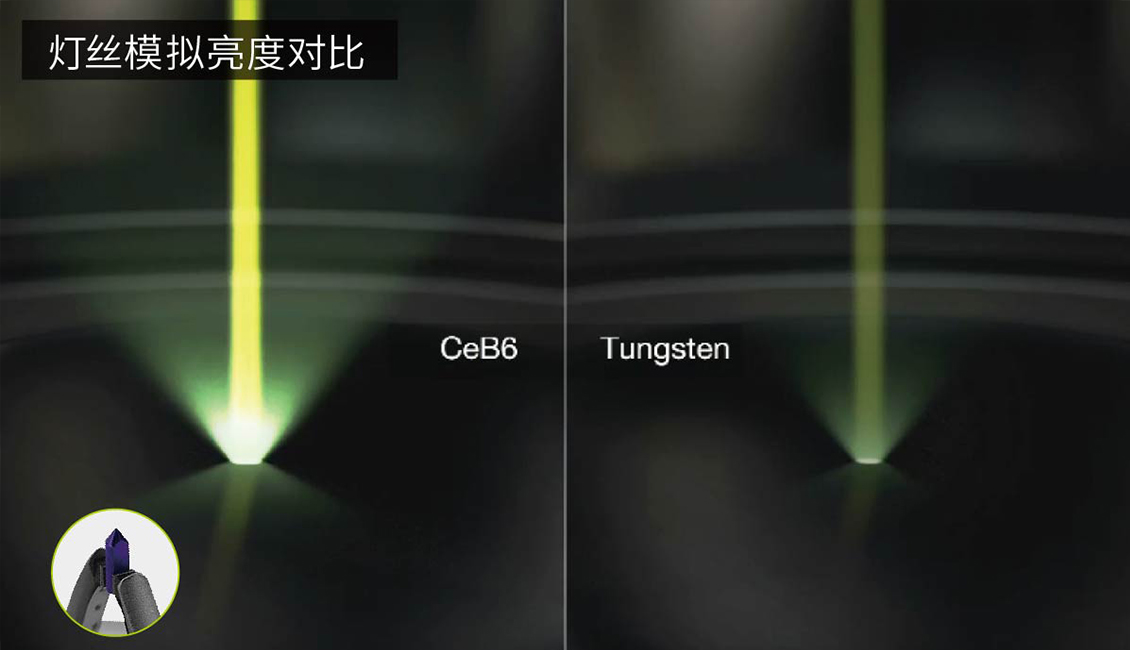

Phenom uses CeB6 filament with a work function of 2.5 eV. Its brightness is 10 times that of tungsten filament. The chromatic aberration of the emitted electrons is small, providing you with higher quality images. Its service life is up to 1500 hours, which is 10 times that of tungsten filament. It can be used normally for 2-3 years without replacing the filament, which saves you the trouble of frequently replacing the filament and ensures the progress of the work.

Easy Operation

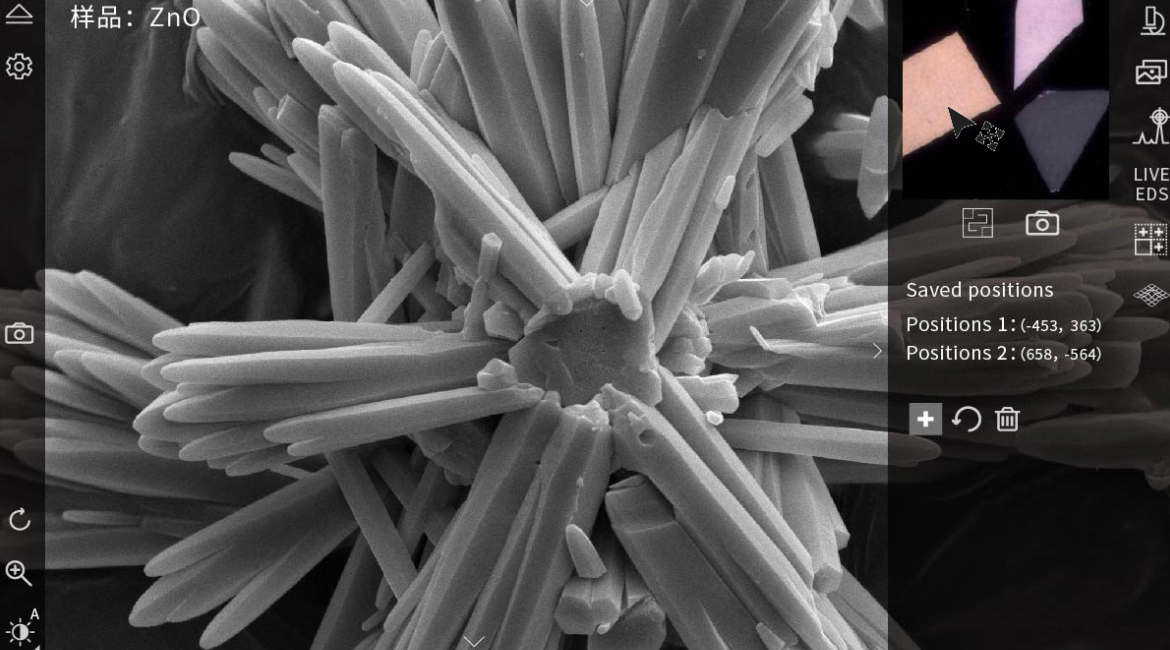

Load samples in one step, evacuate in 15 seconds, and achieve images in 30 seconds. Helpful in fast sample filtering, analysis position and the sample's pre-processing result confirming.

无需喷金

不导电样品可以不用喷金直接观察

Not gold coating

Phenom uses low vacuum technology. The emitted electrons collide with air molecules to generate positive ions. The positive ions neutralize the electrons accumulated on the sample surface, effectively suppressing the generation of charging effects, and directly observing various non-conductive samples. By using the reduces the charge sample holder, the magnification of initial charging can be increased by about 8 times, meanwhile it doesn't affect the filament life.

SEM with EDS

It offers fast, high-resolution imaging in addition to an integrated energy dispersive spectroscopy (EDS) detector for robust, easy-to-use, rapid elemental analysis
