FEG Desktop SEM

Phenom SEM

FEG Desktop SEM

FEG Desktop SEM CeB6 Desktop SEM ParticleX automatic SEM Automatic SEM

model

Pharos G2 Desktop FEG-SEM Nano G2 Desktop FEG-SEM

Phenom Pharos G2

Pharos G2 Desktop FEG-SEM

Maximum SEM magnification：2,000,000x
SEM resolution：≤ 1.5nm
Completely shockproof

Phenom Nano G2

Nano G2 Desktop FEG-SEM

Maximum SEM magnification：1,000,000x
SEM resolution：≤ 2.5nm
Completely shockproof

FEG Desktop SEM

Product Features

Schottky field emission
High resolution imaging
Not gold coating
SEM with EDS

FEG Desktop SEM

Schottky field emission

Field emission SEM has distinct advantages. Its electron beam energy has small color difference, high beam density, resolution can reach angstrom (Å) , and filament life is as long as 10,000 hours. Phenom desktop field emission SEM integrates resolution, stability and operability. It integrates high-brightness Schottky field emission filament into the desktop SEM, increasing the resolution of the desktop SEM to 1.5 nm.

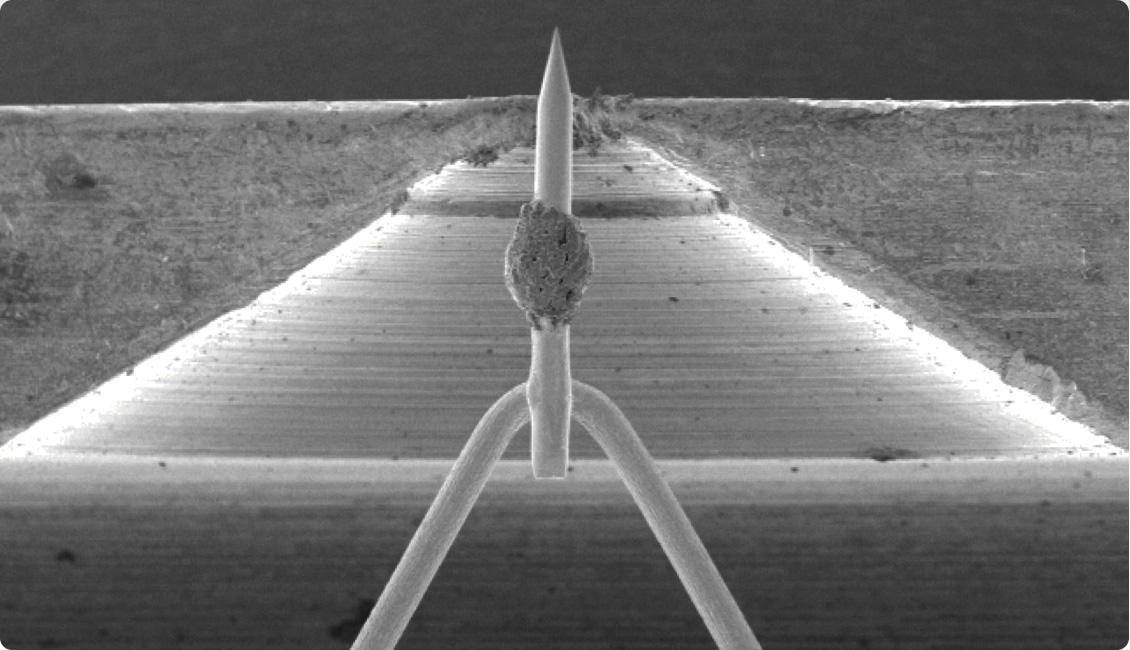

High resolution imaging

Gold particles
Resolution：1.2 nm

SEM resolution

>≤ 1.5nm

Max. SEM magnification

>2million times

Plant Tissue

(Phenom uses low vacuum technology)

Not gold coating

Phenom uses low vacuum technology. The emitted electrons collide with air molecules to generate positive ions. The positive ions neutralize the electrons accumulated on the sample surface, effectively suppressing the generation of charging effects, and directly observing various non-conductive samples. By using the reduces the charge sample holder, the magnification of initial charging can be increased by about 8 times, meanwhile it doesn't affect the filament life.

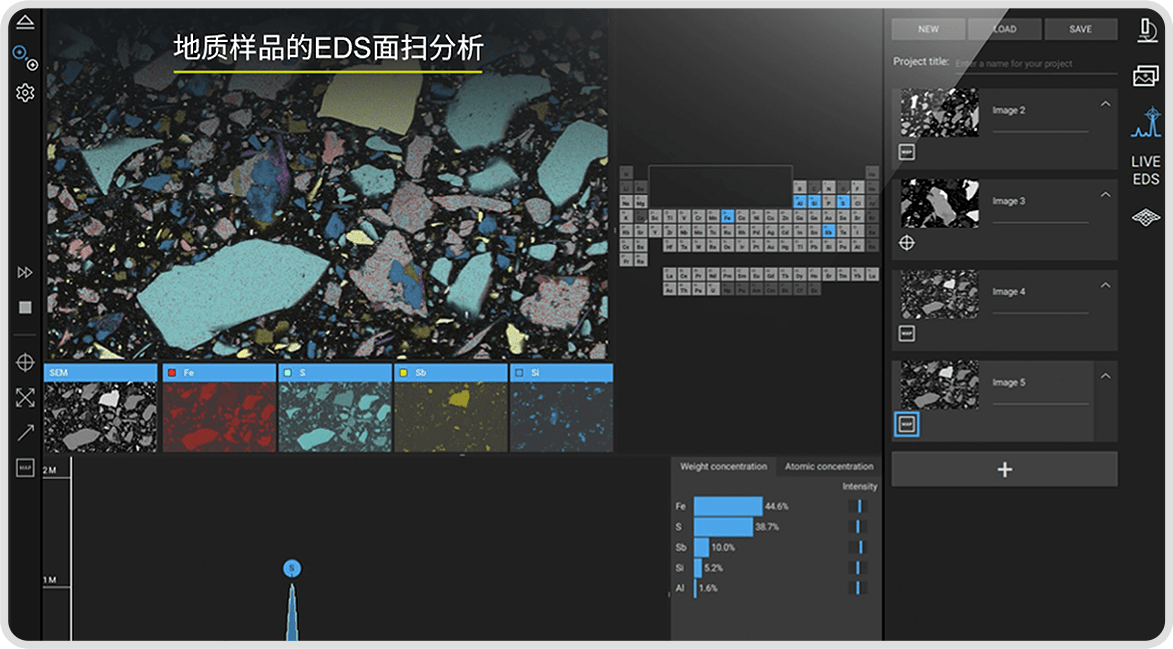

SEM
with EDS

It offers fast, high-resolution imaging in addition to an integrated energy dispersive spectroscopy (EDS) detector for robust, easy-to-use, rapid elemental analysis
