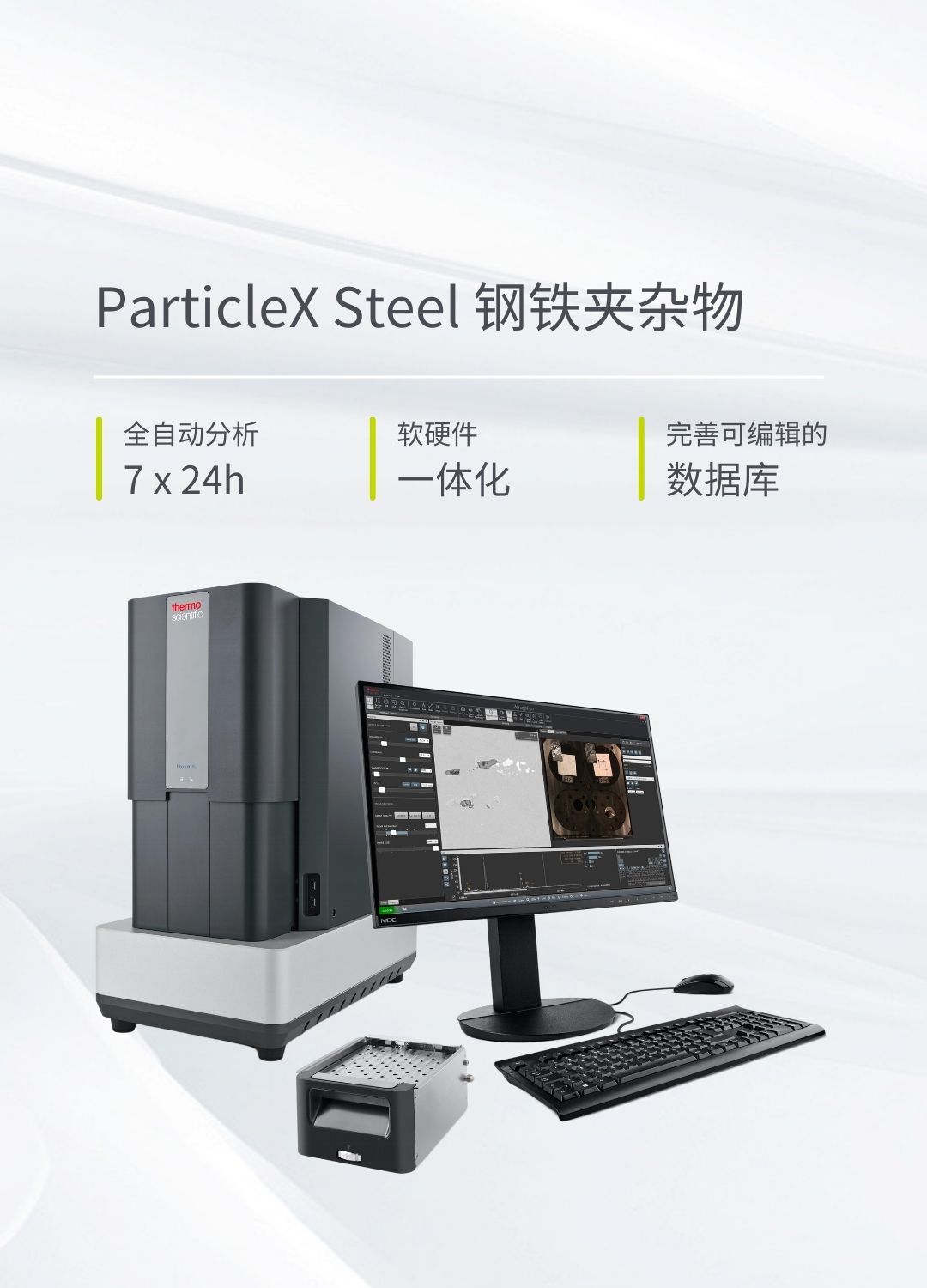

ParticleX Steel 全自动钢铁夹杂物分析系统

ParticleX Steel

Fully automatic analysis

7x24h
Integration of

Hardware & Software

Phenom SEM

ParticleX automatic SEM

FEG Desktop SEM CeB6 Desktop SEM Automatic SEM

ParticleX Steel

Phenom Pharos G2 Phenom Nano G2 Phenom XL G2 Phenom ProX G6 Phenom Pro Phenom Pure ParticleX Battery ParticleX TC ParticleX Phenom GSR

Introduction
Specification
Practical Features
Video
Application

Download

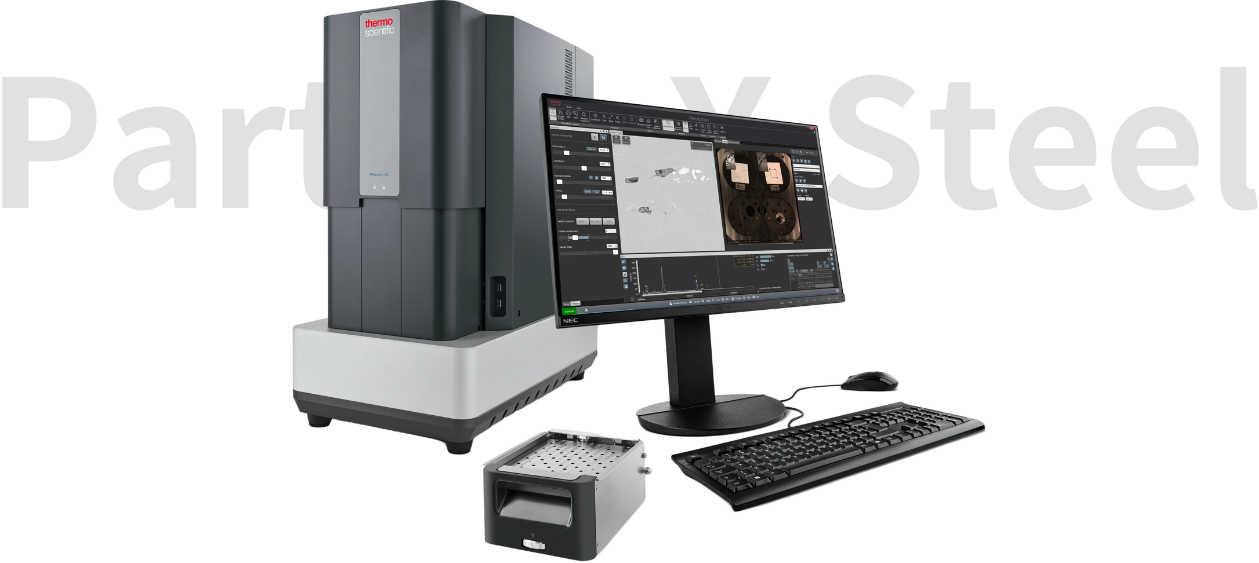

ParticleX Steel

Product Introduction

The control over non-metallic inclusions during the steel making process is a key skill for the efficient production of modern steels demanded by today’s customers. To be competitive in today’s steel making requires knowledge of the many parameters that control the formation of the non-metallic inclusions in the steel. Timely and accurate data are the prerequisites for gaining the insight required for high-value steel making.

In addition to providing high-quality SEM analysis, the Phenom ParticleX Steel Desktop SEM is also designed to perform a number of specific functions. These include particle analysis of metal powders at the microscale for the additive industry, confirmation components fulfill technical cleanliness requirements, and analysis of inclusions in steel. All have now been made possible in-house and on your desktop.

ParticleX Steel

Specification

Product model	ParticleX Steel	ParticleX Battery	ParticleX TC
Product images
Full name of the product	ParticleX Steel	ParticleX Battery	ParticleX TC
Light optical	3 - 19 X	3 - 19 X	3 - 19 X
Electron optical	200,000 X	200,000 X	200,000 X
Resolution	≤ 8 nm	≤ 8 nm	≤ 8 nm
Electron source	Long lifetime thermionic source (CeB6)	Long lifetime thermionic source (CeB6)	Long lifetime thermionic source (CeB6)
Color navigation camera	Color	Color	Color
Acceleration voltages	4.8 kV - 20.5 kV	4.8 kV - 20.5 kV	4.8 kV - 20.5 kV
Vacuum Mode	Integrated low-/medium-/high-vacuum modes standard	Integrated low-/medium-/high-vacuum modes standard	Integrated low-/medium-/high-vacuum modes standard
Detector	BSD SED（Optional） EDS	BSD SED（Optional） EDS	BSD SED（选配） EDS
Fully automatic function	Fully automatic analysis of steel	Fully automatic analysis of battery	Fully automatic analysis of automobile parts

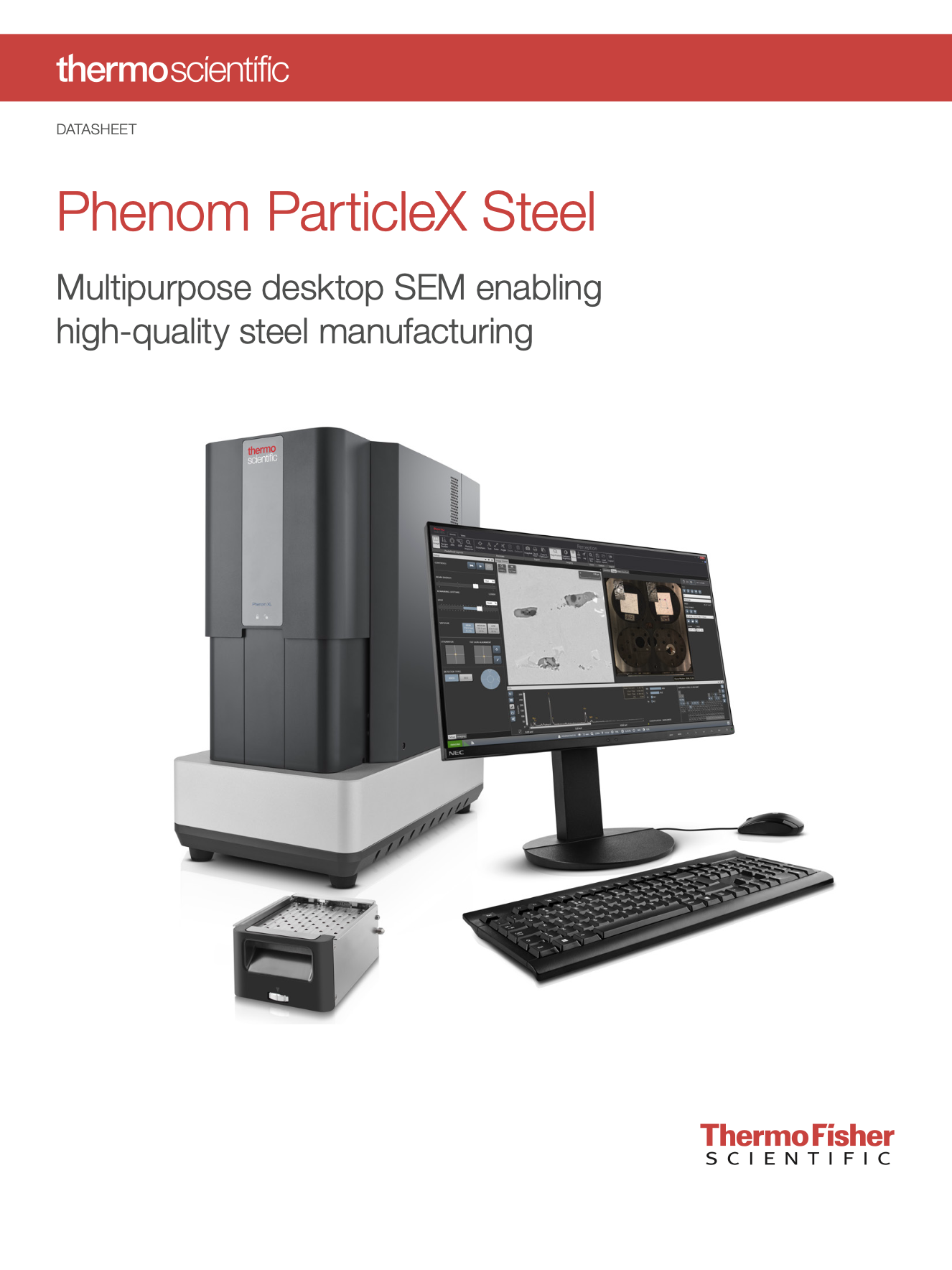

Download Center	Product Brochure	Product Brochure	Product Brochure

ParticleX Steel

Practical Features

Automatic inclusion identification

Automatic high-resolution image acquisition

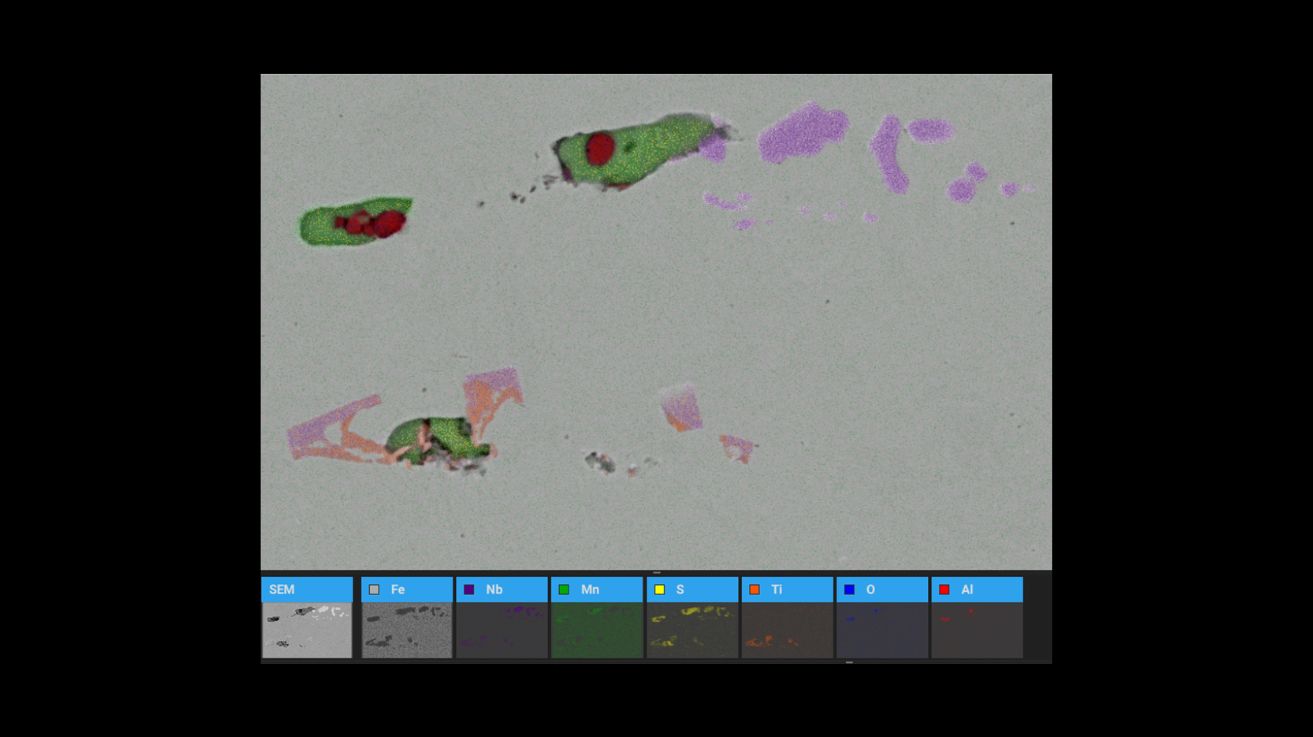

Automatic EDS component analysis

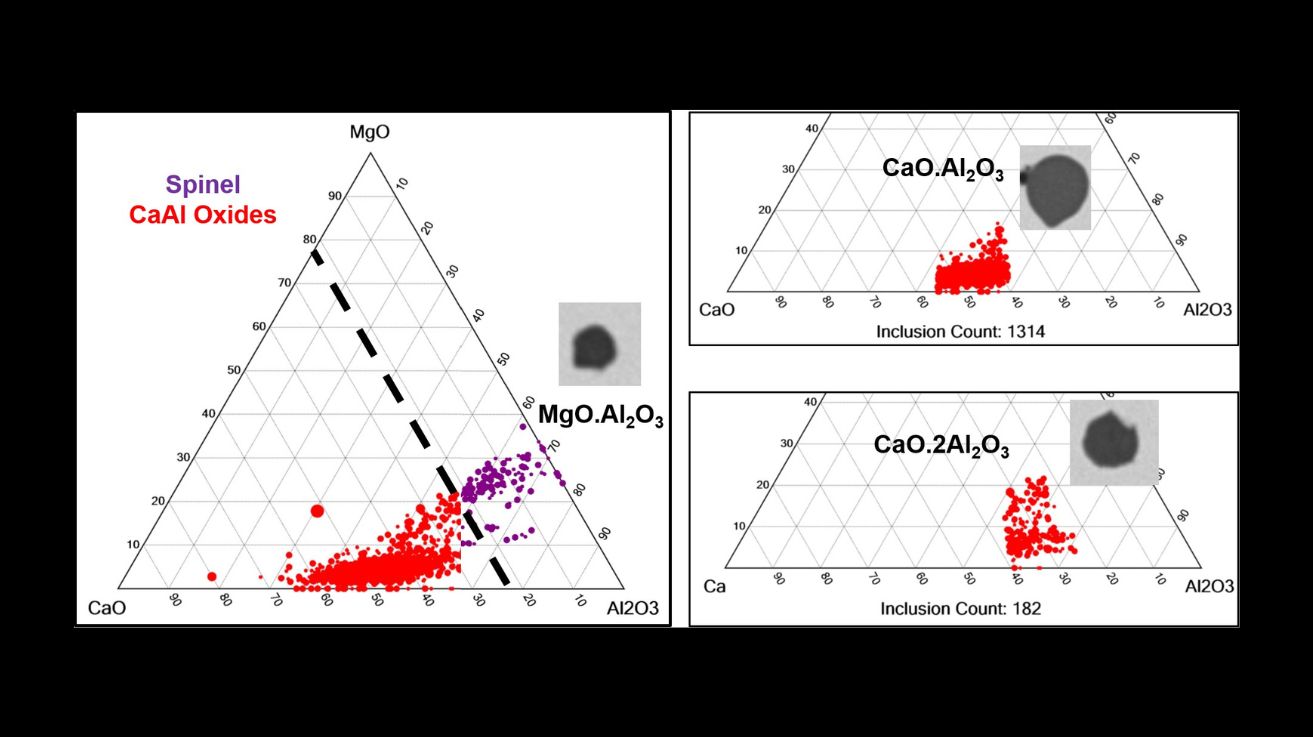

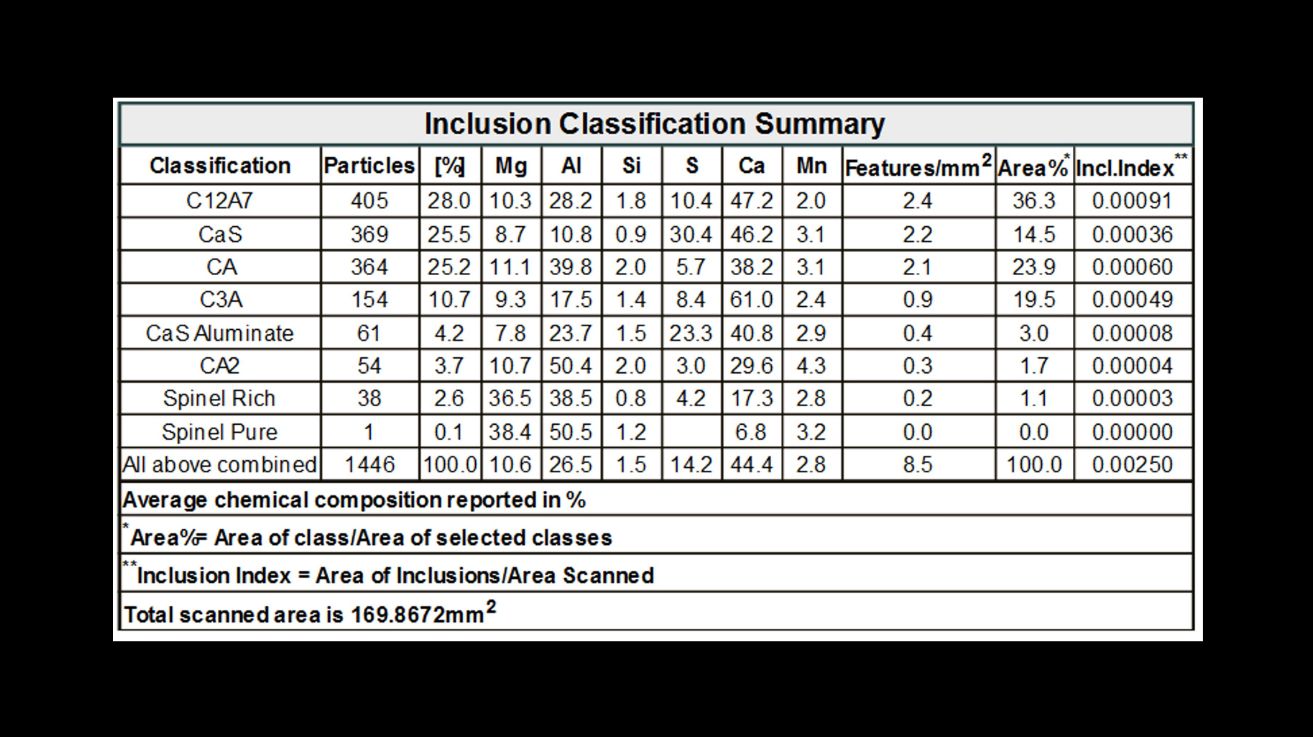

Automatic inclusion classification

ParticleX Steel

Video Introduction

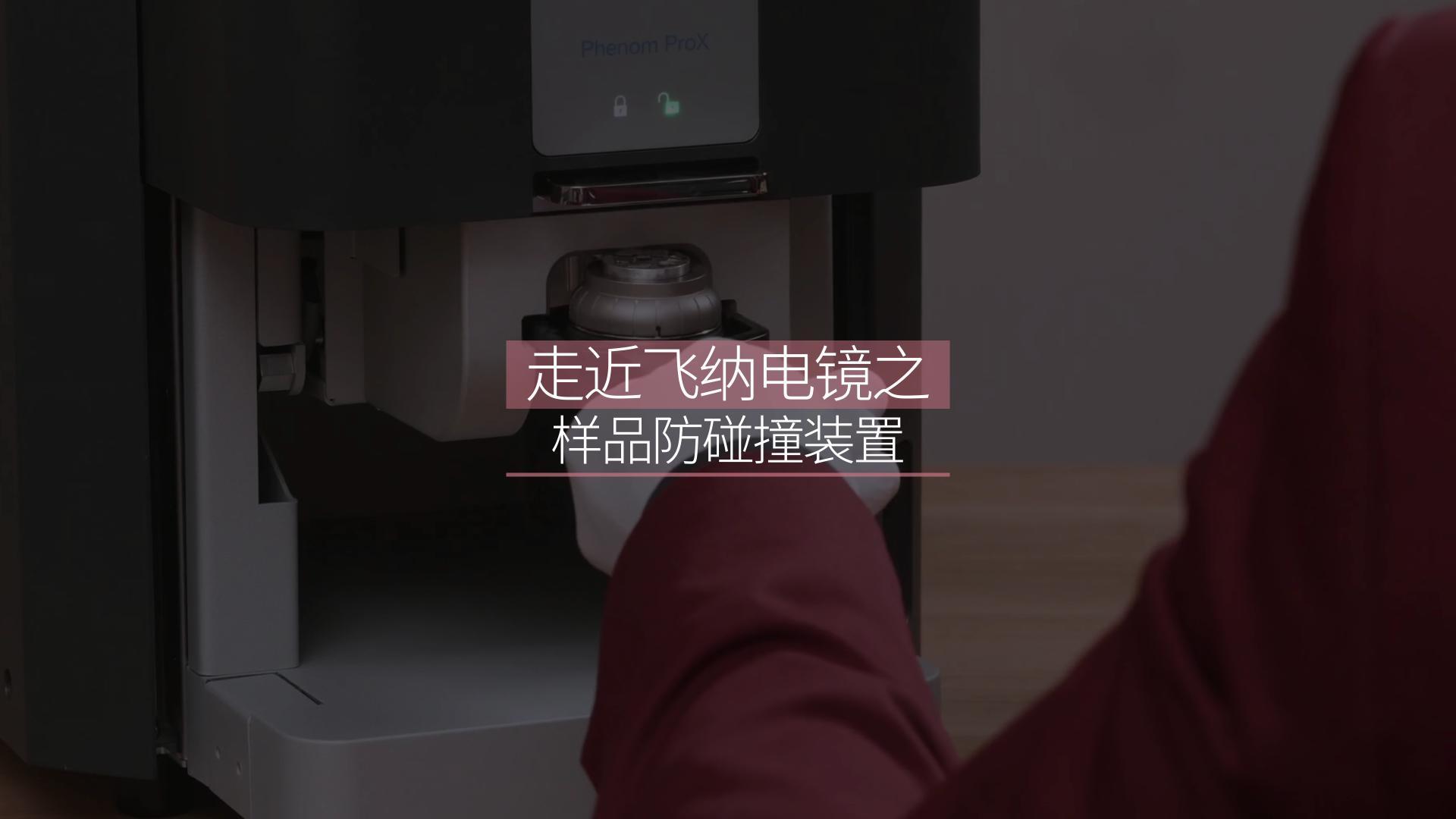

Completely shockproof
Convenient parameter settings

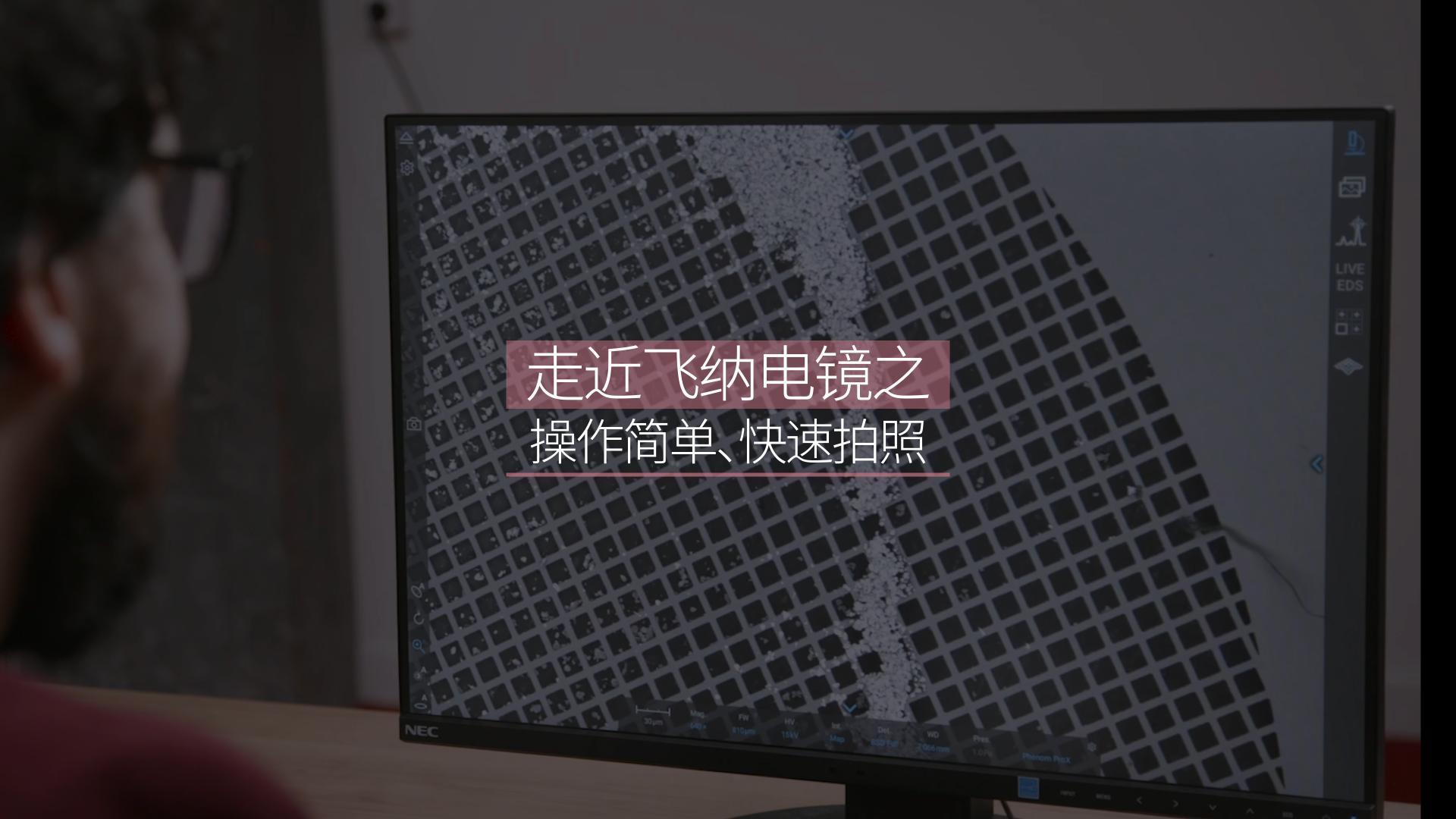

Easy to operate

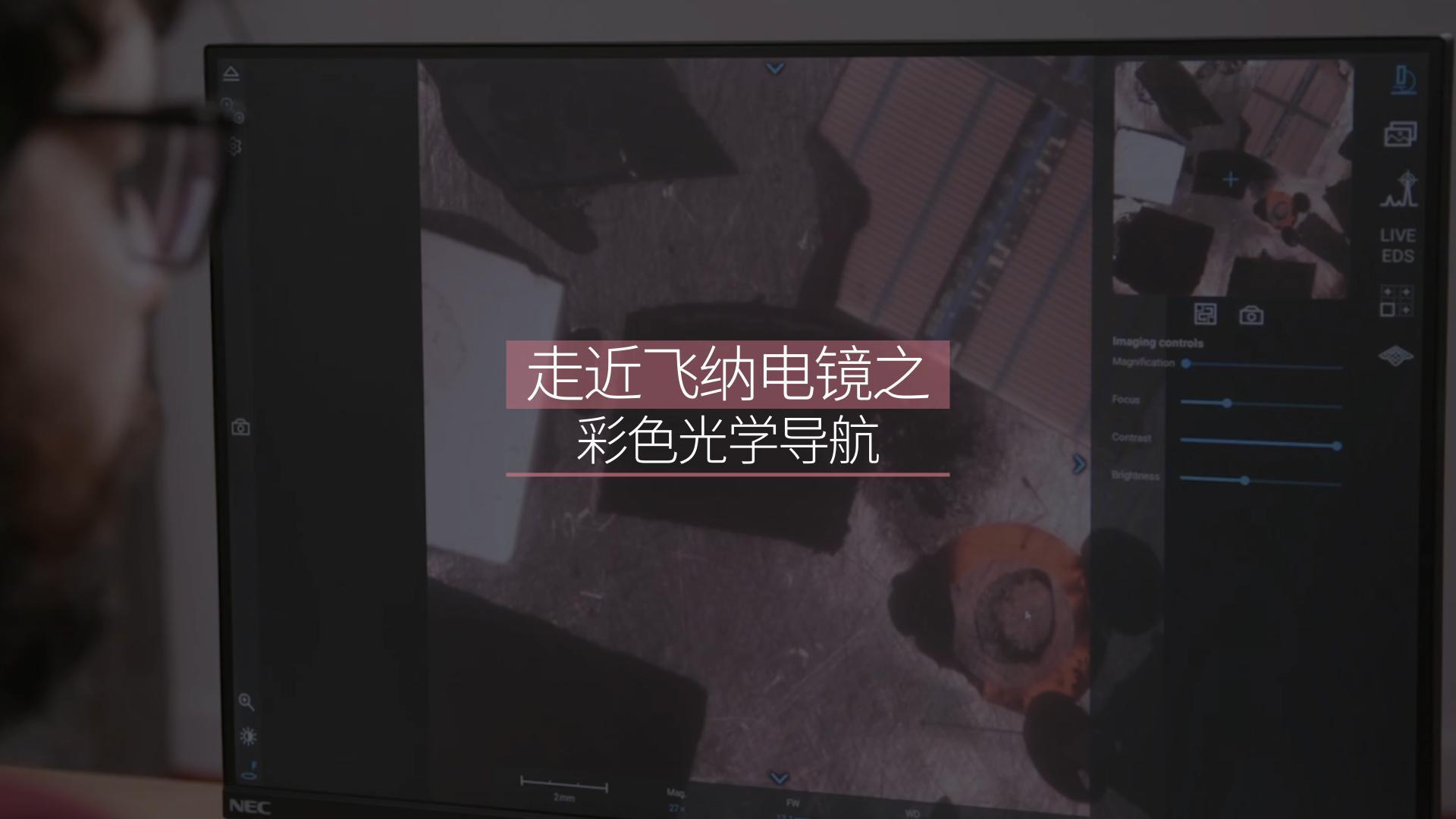

Color navigation camera
Loading samples
Desktop SEM with EDS
