ParticleX

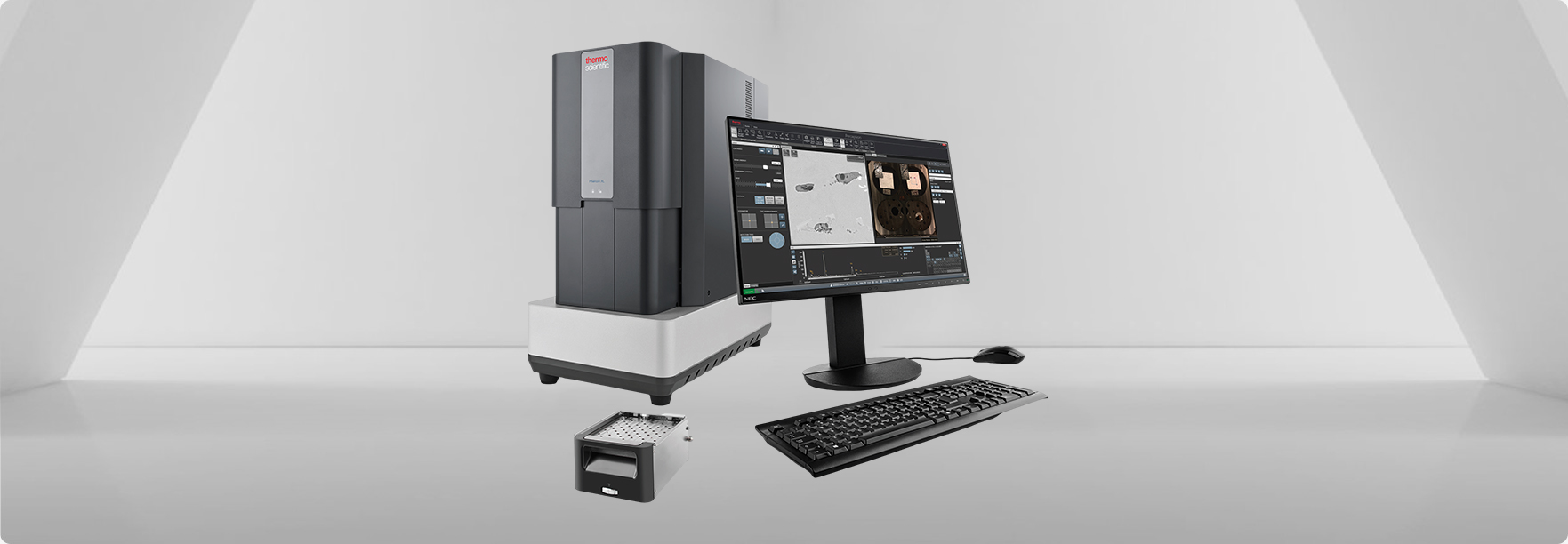

Product Introduction

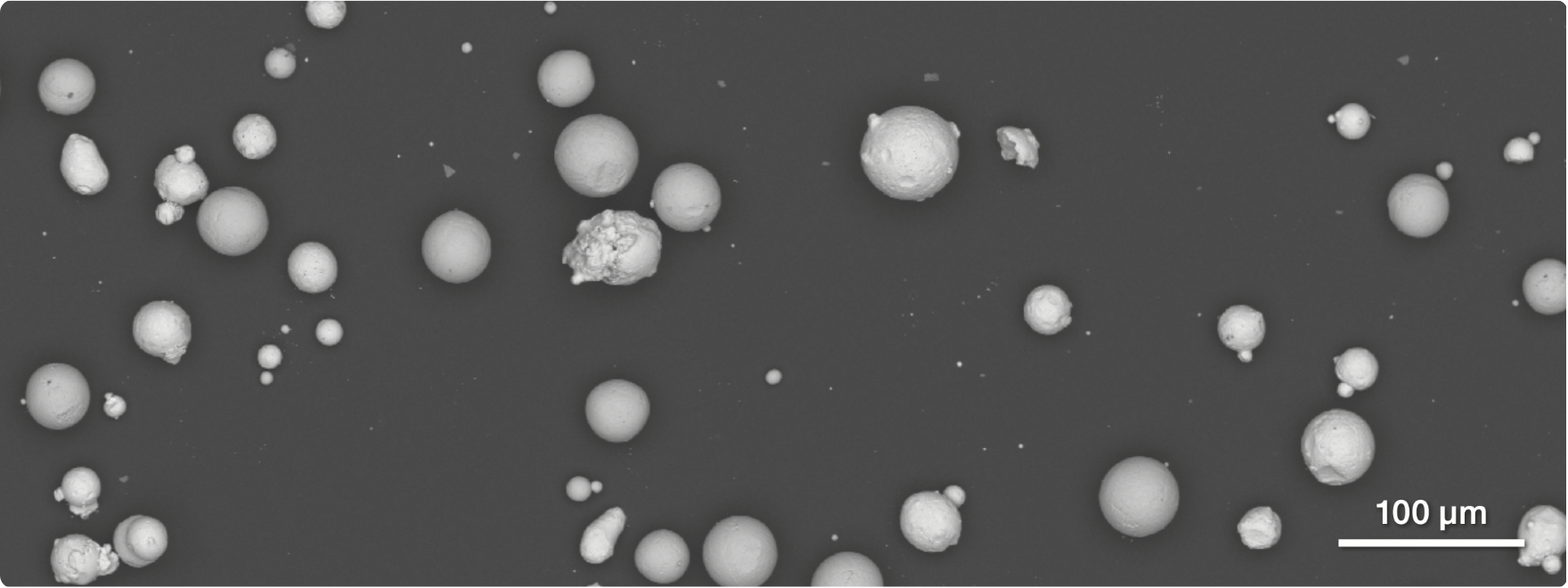

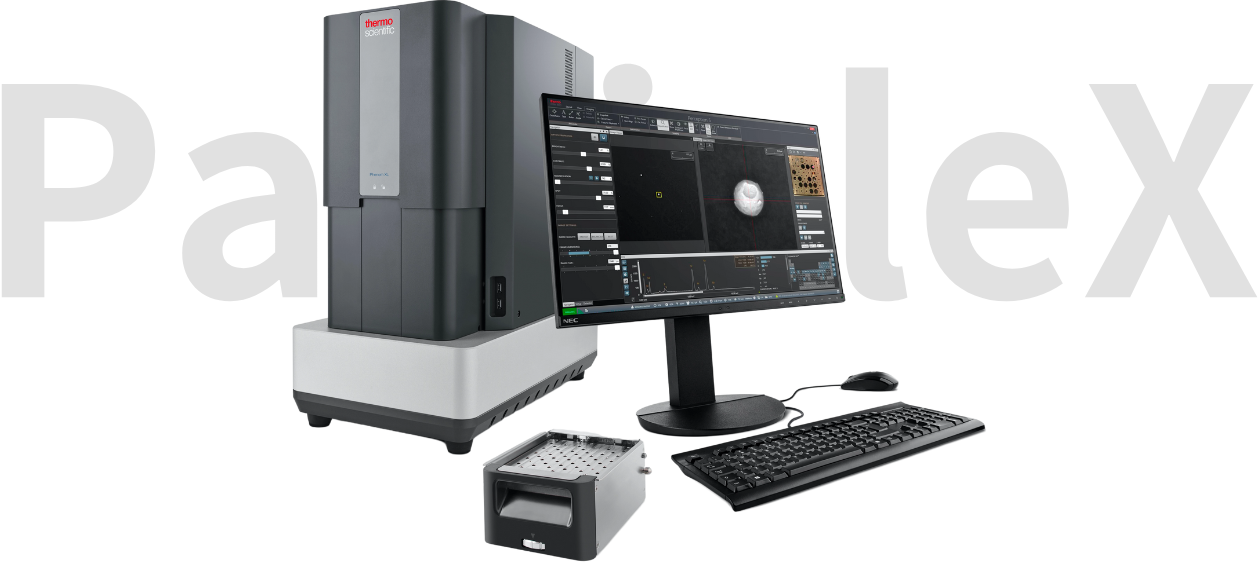

The Phenom ParticleX Desktop SEM for additive manufacturing enables automated scanning electron microscopy EDS. It is the proven solution for monitoring the three most critical characteristics of metal powders for powder-bed and powder-fed additive manufacturing processes: particle size distributions, individual particle morphology and foreign particles.

ParticleX

Specification

Product model	ParticleX	ParticleX Battery	ParticleX Steel
Product images
Full name of the product	ParticleX	ParticleX Battery	ParticleX Steel
Light optical	3 - 19 X	3 - 19 X	3 - 19 X
Electron optical	200,000 X	200,000 X	200,000 X
Resolution	≤ 8 nm	≤ 8 nm	≤ 8 nm
Electron source	Long lifetime thermionic source (CeB6)	Long lifetime thermionic source (CeB6)	Long lifetime thermionic source (CeB6)
Color navigation camera	Color	Color	Color
Acceleration voltages	4.8 kV - 20.5 kV	4.8 kV - 20.5 kV	4.8 kV - 20.5 kV
Vacuum Mode	Integrated low-/medium-/high-vacuum modes standard	Integrated low-/medium-/high-vacuum modes standard	Integrated low-/medium-/high-vacuum modes standard
Detector	BSD SED（Optional） EDS	BSD SED（Optional） EDS	BSD SED（Optional） EDS
Fully automatic function	Automated powder analysis	Fully automatic analysis of battery	Fully automatic analysis of steel
Download Center	Product Brochure	Product Brochure	Product Brochure

ParticleX

Practical Features

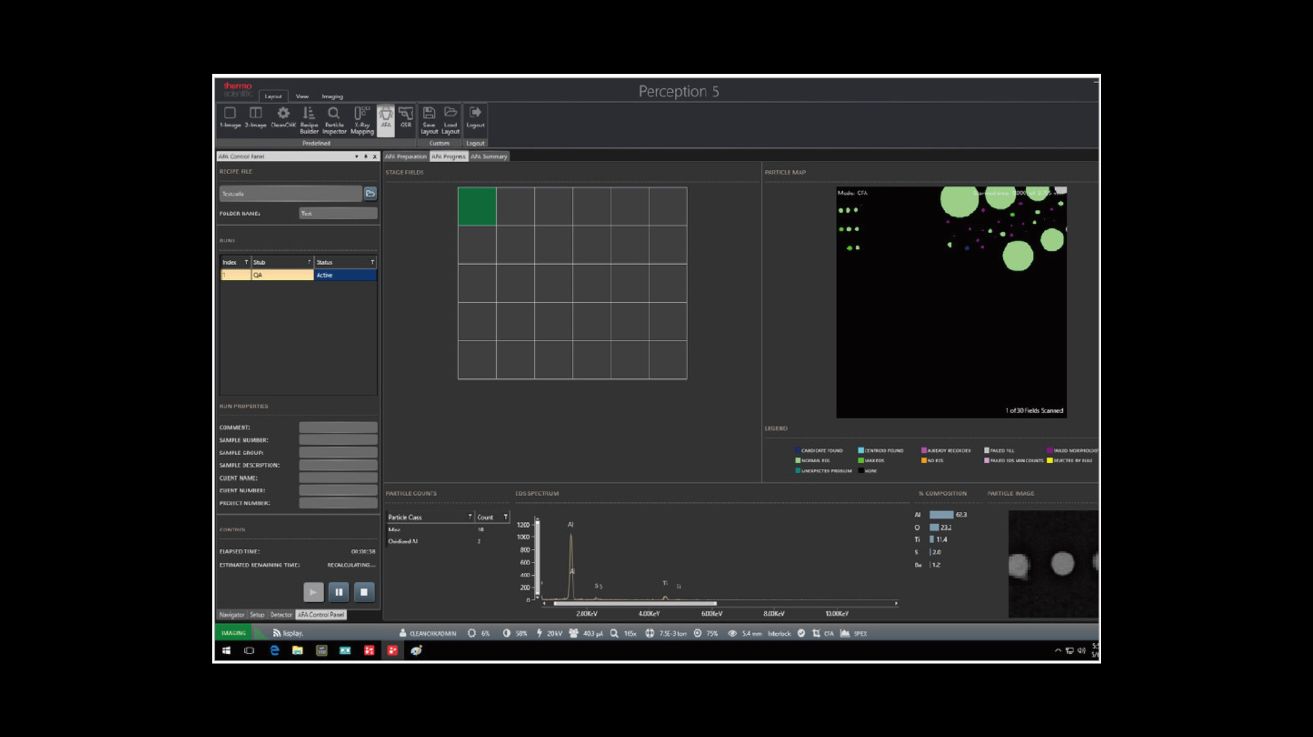

Integrated design of software and hardware

Ensuring stable operation of the system

Dual system analysis

It can be used for fully automatic analysis or as a conventional SEM

Customization of analysis process

Flexible customization of automatic analysis process to meet personalized detection needs

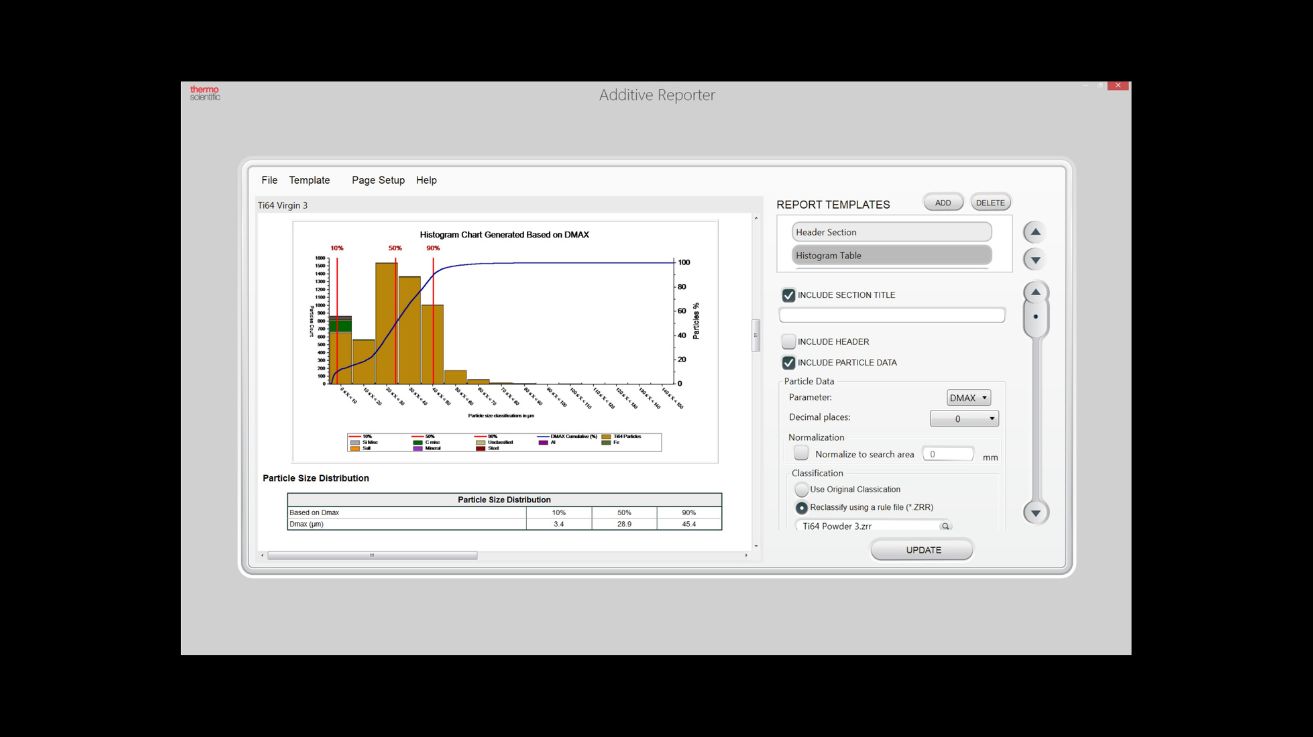

Generate inspection reports with one click

Versatile output formats: PDF, Word, Excel, CSV

ParticleX

Video Introduction

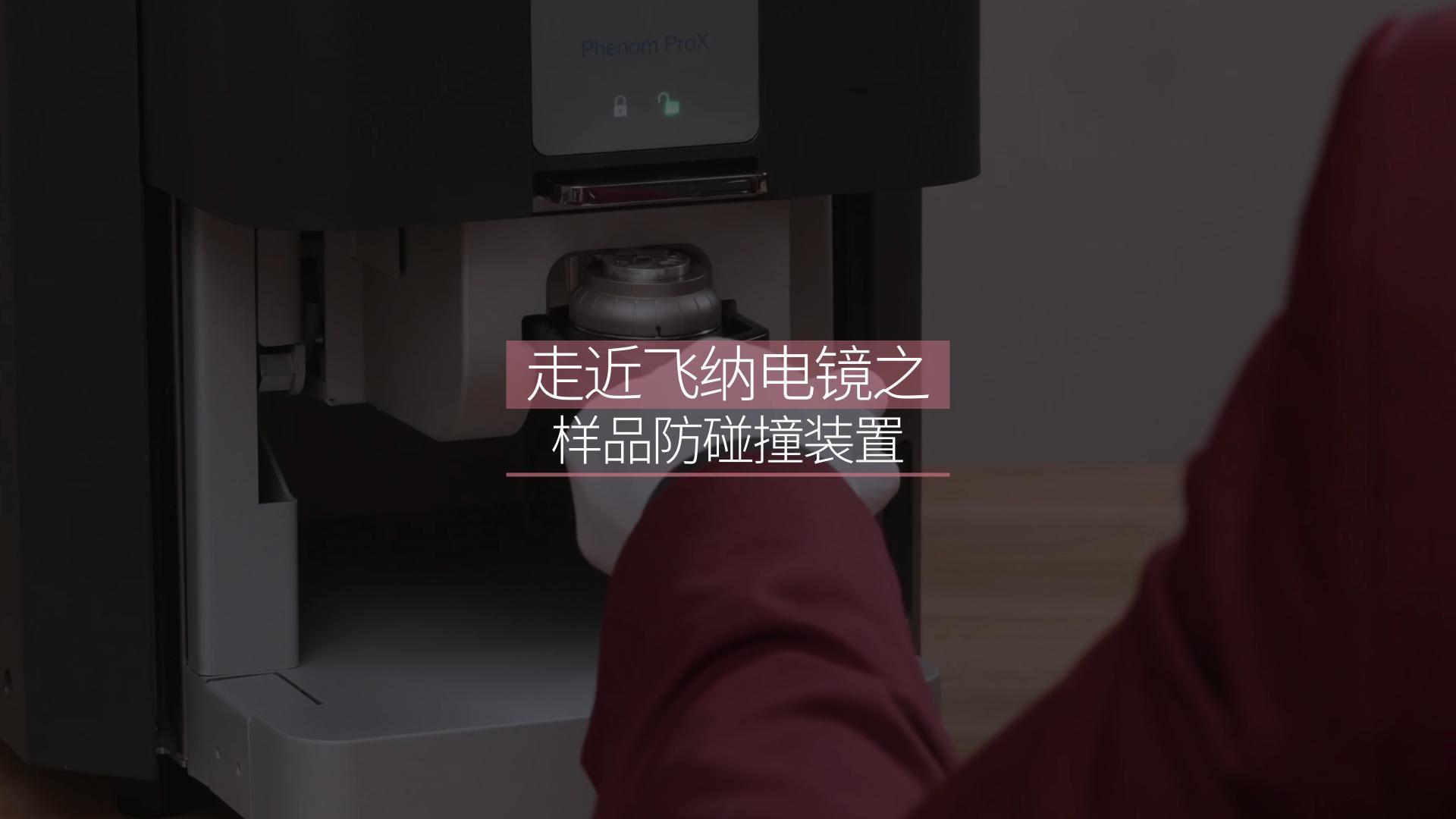

Completely shockproof
Convenient parameter settings
Easy to operate

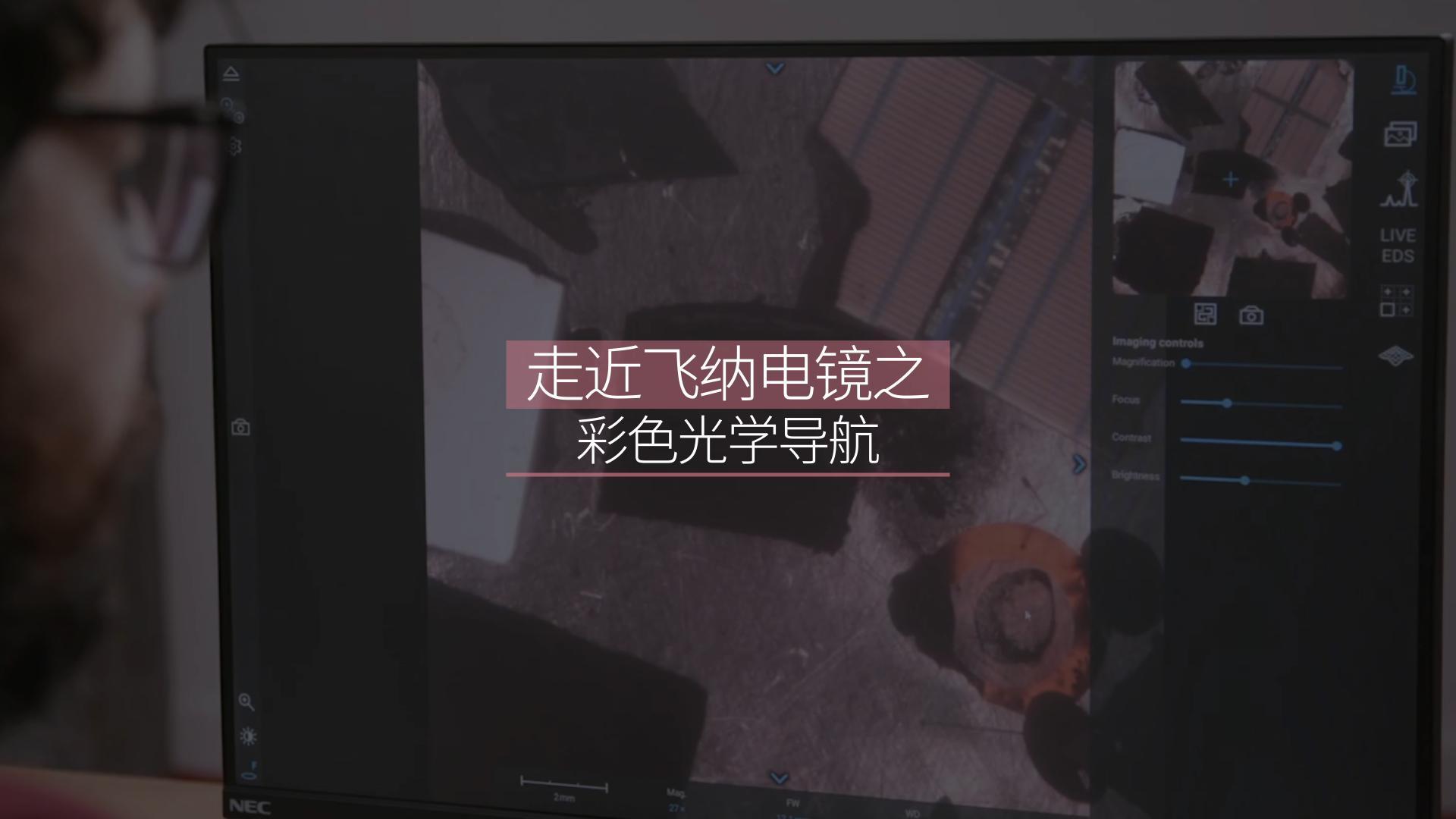

Color navigation camera
Loading samples

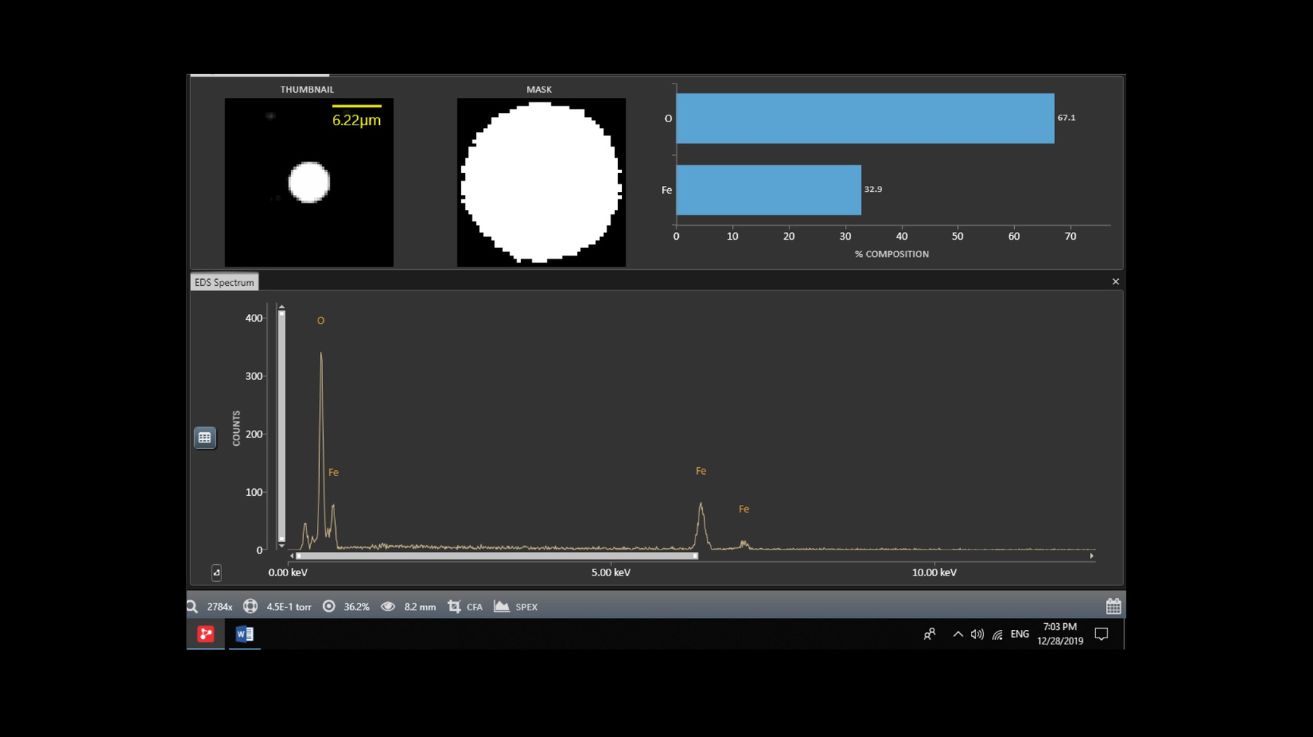

Desktop SEM with EDS
