ParticleX TC

Product Introduction

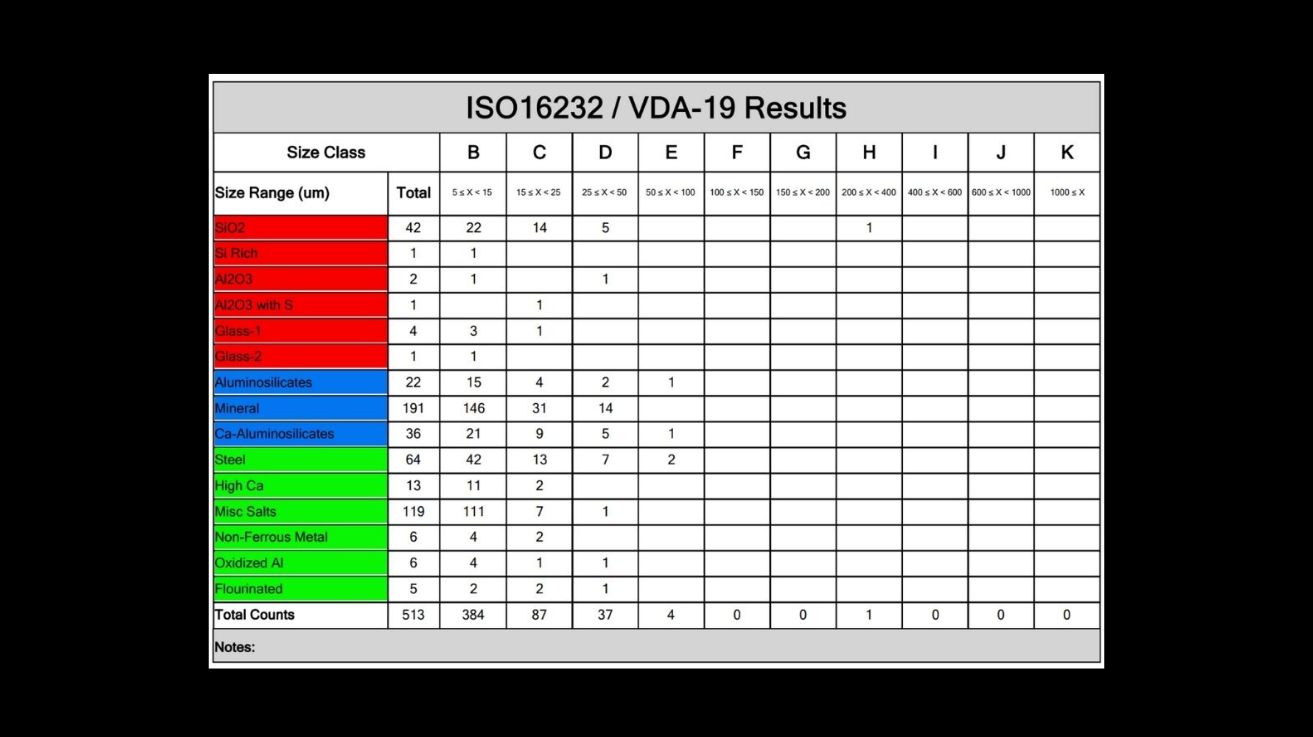

Phenom ParticleX not only provides high quality SEM analysis, it is also designed to perform a number of specific functions. These include particle analysis of metal powders at the microscale for the additive industry, and confirming that components fulfill technical cleanliness specifications according to VDA19 or ISO16232 standards. All now made possible in-house and on your desktop.

ParticleX TC

Specification

Product model	ParticleX TC	ParticleX Battery	ParticleX Steel
Product images
Full name of the product	ParticleX TC	ParticleX Battery	ParticleX Steel
Light optical	3 - 19 X	3 - 19 X	3 - 19 X
Electron optical	200,000 X	200,000 X	200,000 X
Resolution	≤ 8 nm	≤ 8 nm	≤ 8 nm
Electron source	Long lifetime thermionic source (CeB6)	Long lifetime thermionic source (CeB6)	Long lifetime thermionic source (CeB6)
Color navigation camera	Color	Color	Color
Acceleration voltages	4.8 kV - 20.5 kV	4.8 kV - 20.5 kV	4.8 kV - 20.5 kV
Vacuum Mode	Integrated low-/medium-/high-vacuum modes standard	Integrated low-/medium-/high-vacuum modes standard	Integrated low-/medium-/high-vacuum modes standard
Detector	BSD SED（选配） EDS	BSD SED（Optional） EDS	BSD SED（Optional） EDS
Fully automatic function	Fully automatic analysis of automobile parts	Fully automatic analysis of battery	Fully automatic analysis of steel

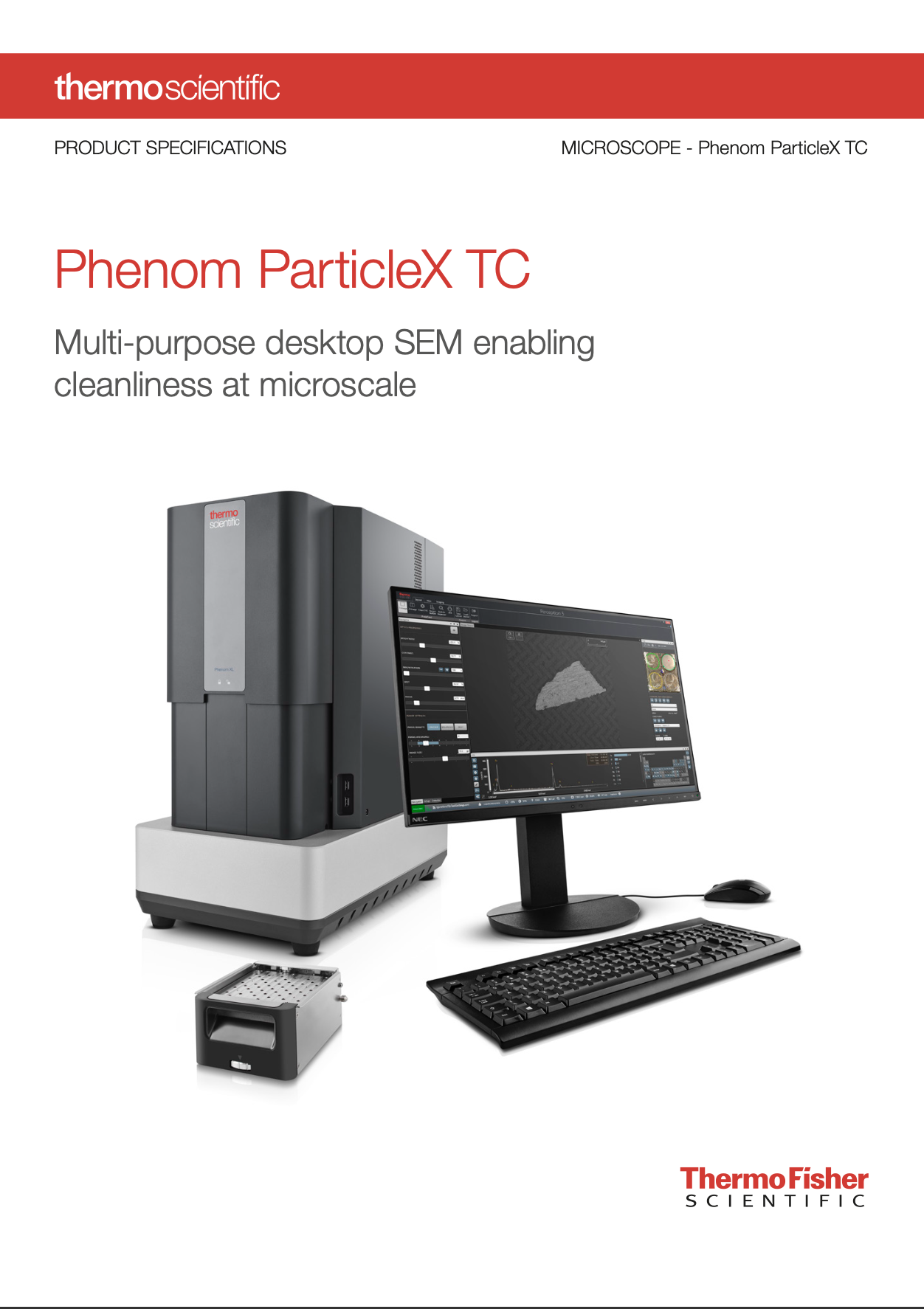

Download Center	Product Brochure	Product Brochure	Product Brochure

ParticleX TC

Practical Features

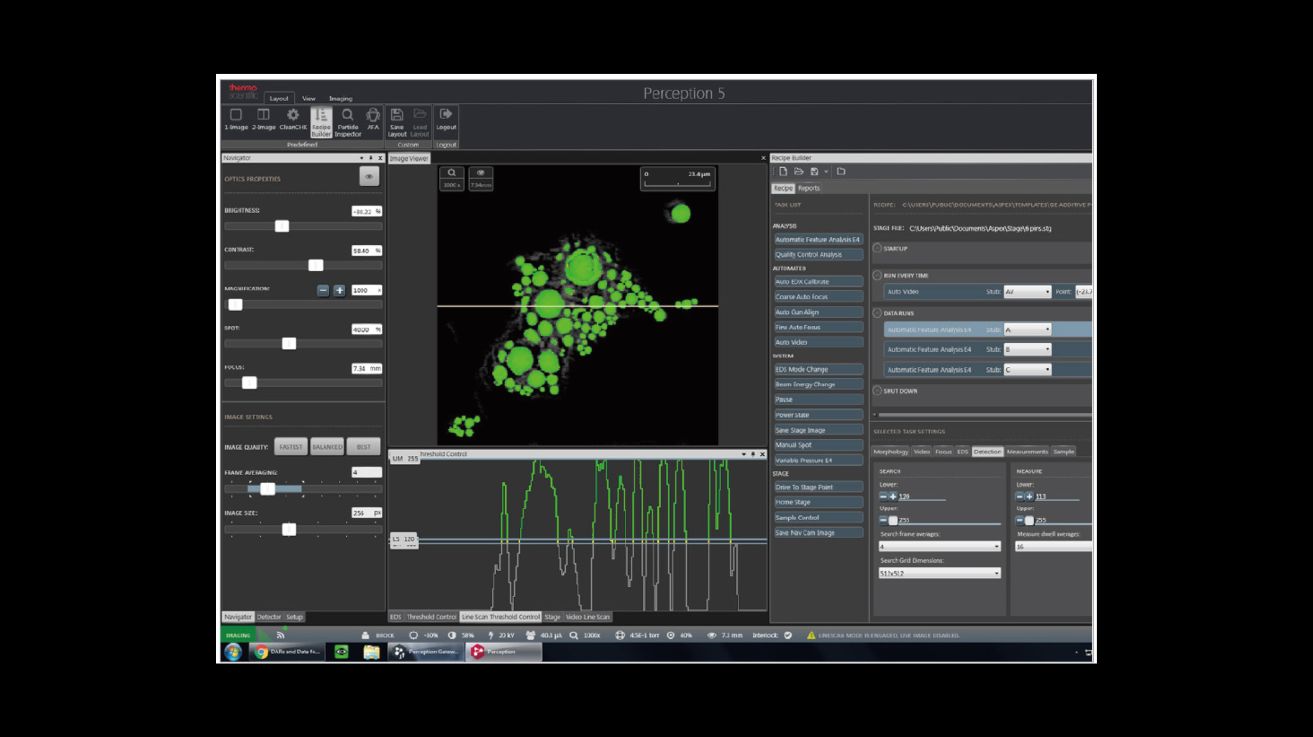

Particle size distribution

the most comprehensive particle size range

Particle morphology analysis

multiple measurement methods to choose from

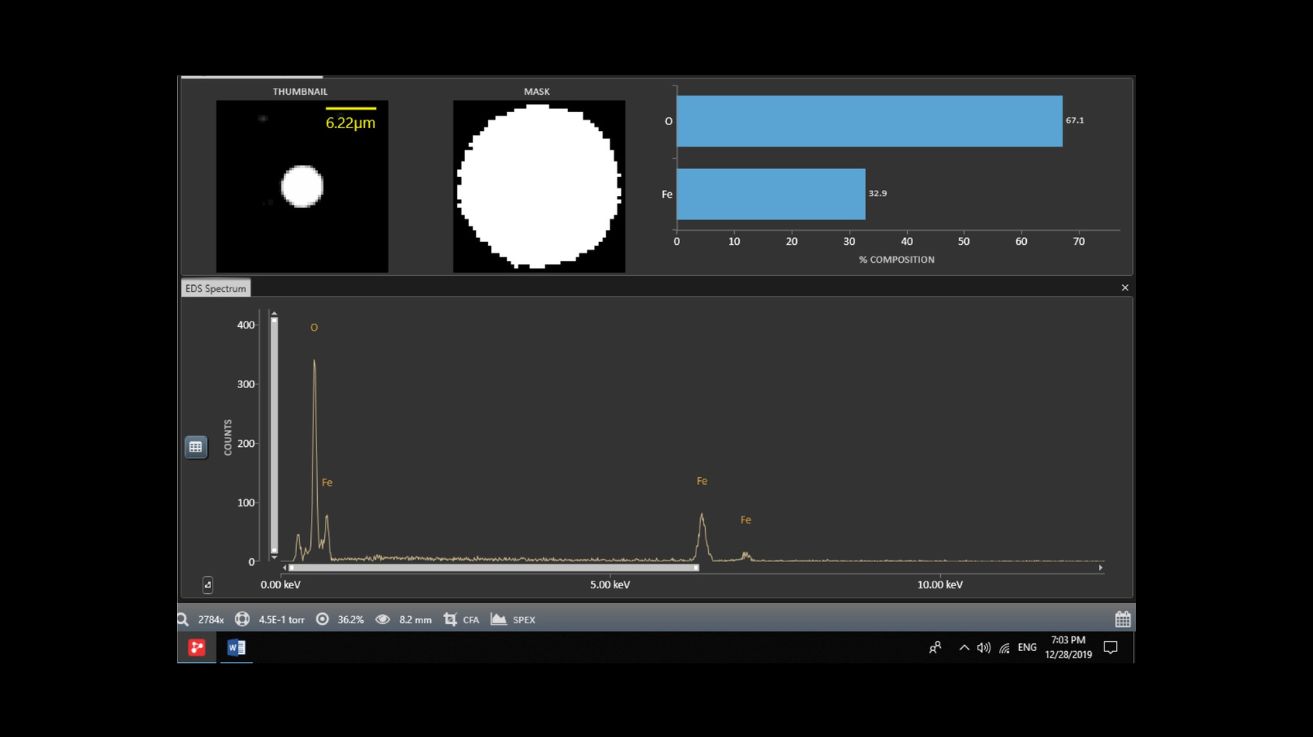

Impurity particle detection

can detect trace amounts of impurity particles contained in thousands of particles

High resolution imaging

SEM resolution：≤ 8 nm

ParticleX TC

Video Introduction

Completely shockproof

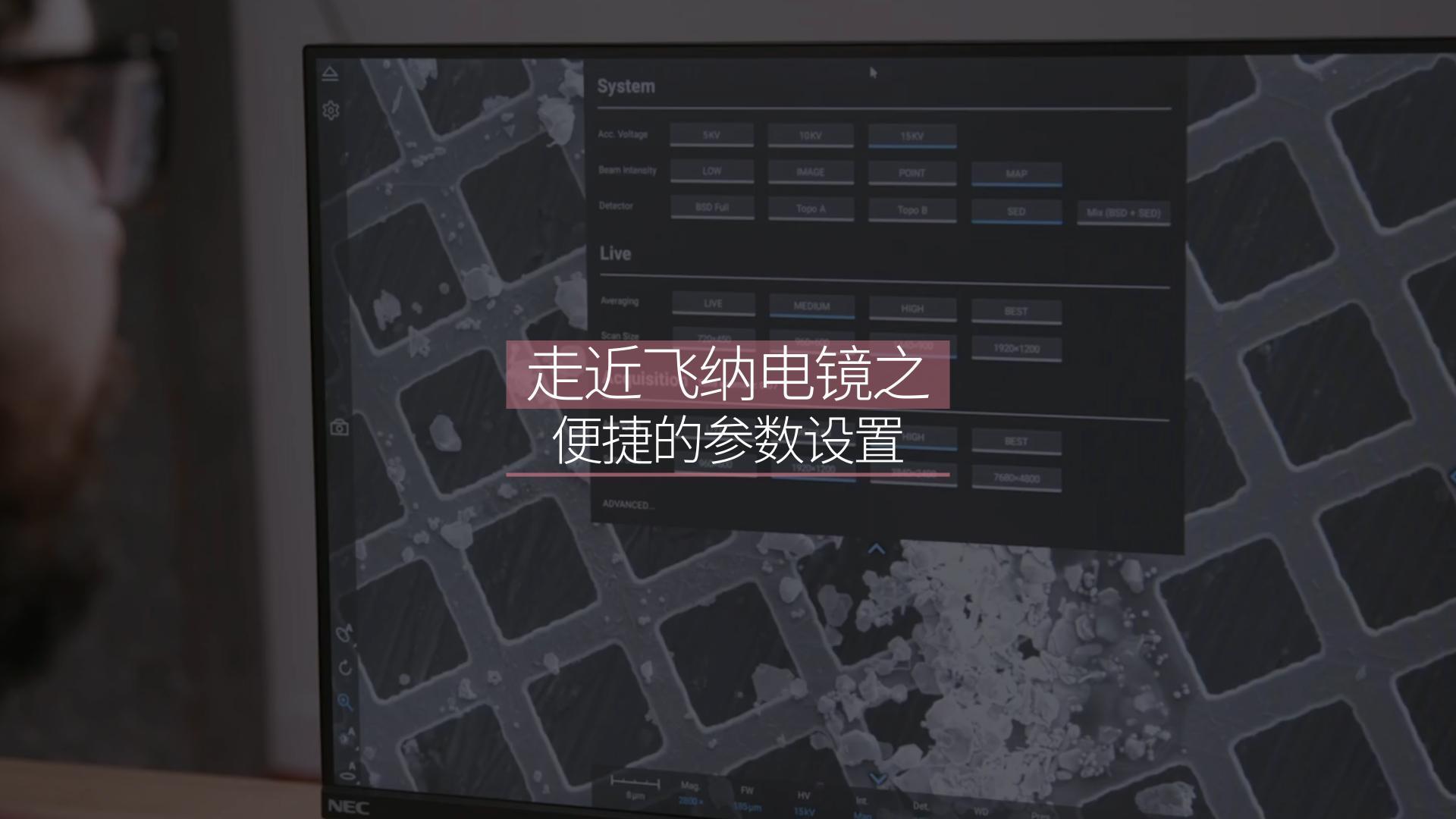

Convenient parameter settings

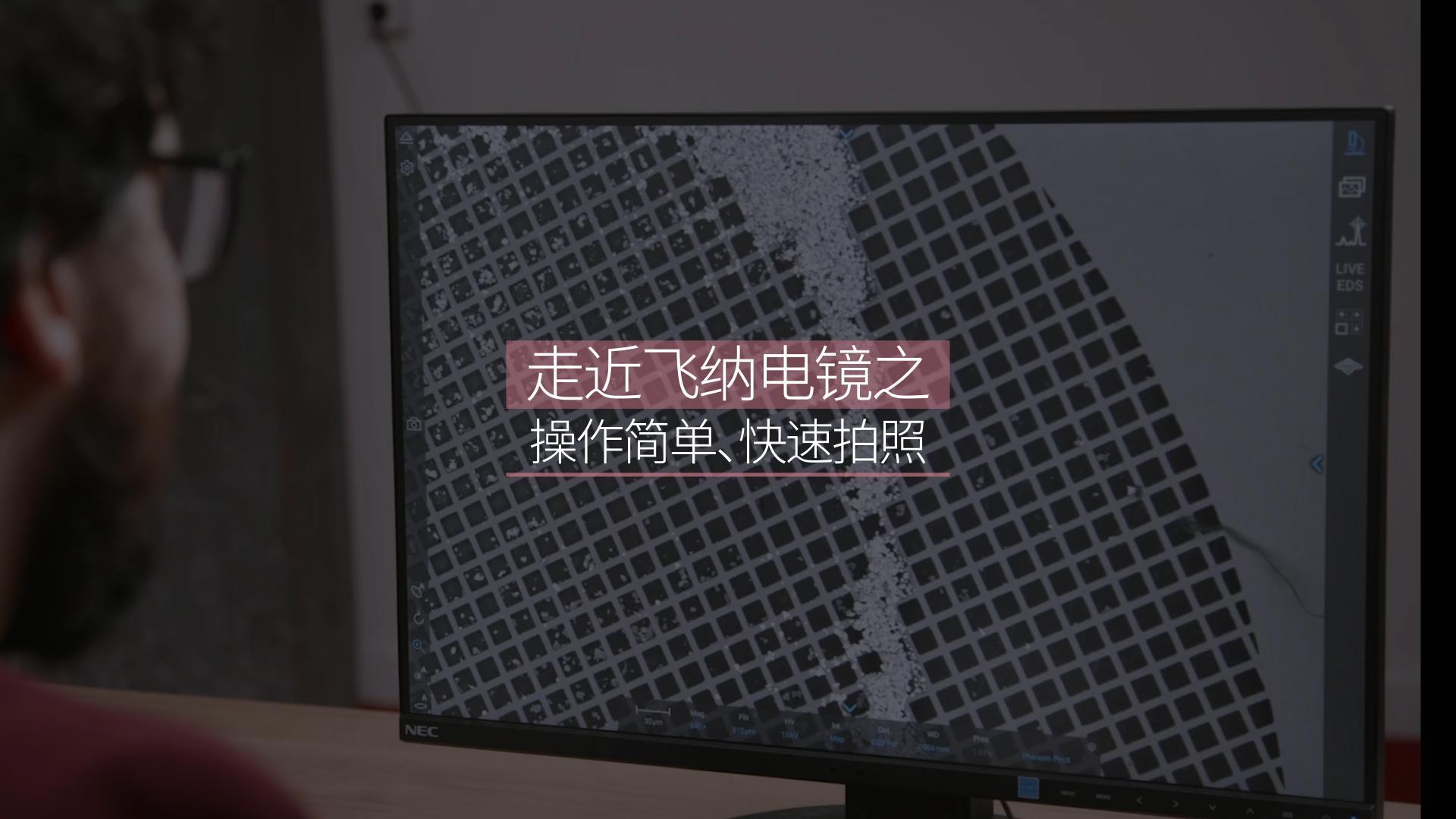

Easy to operate

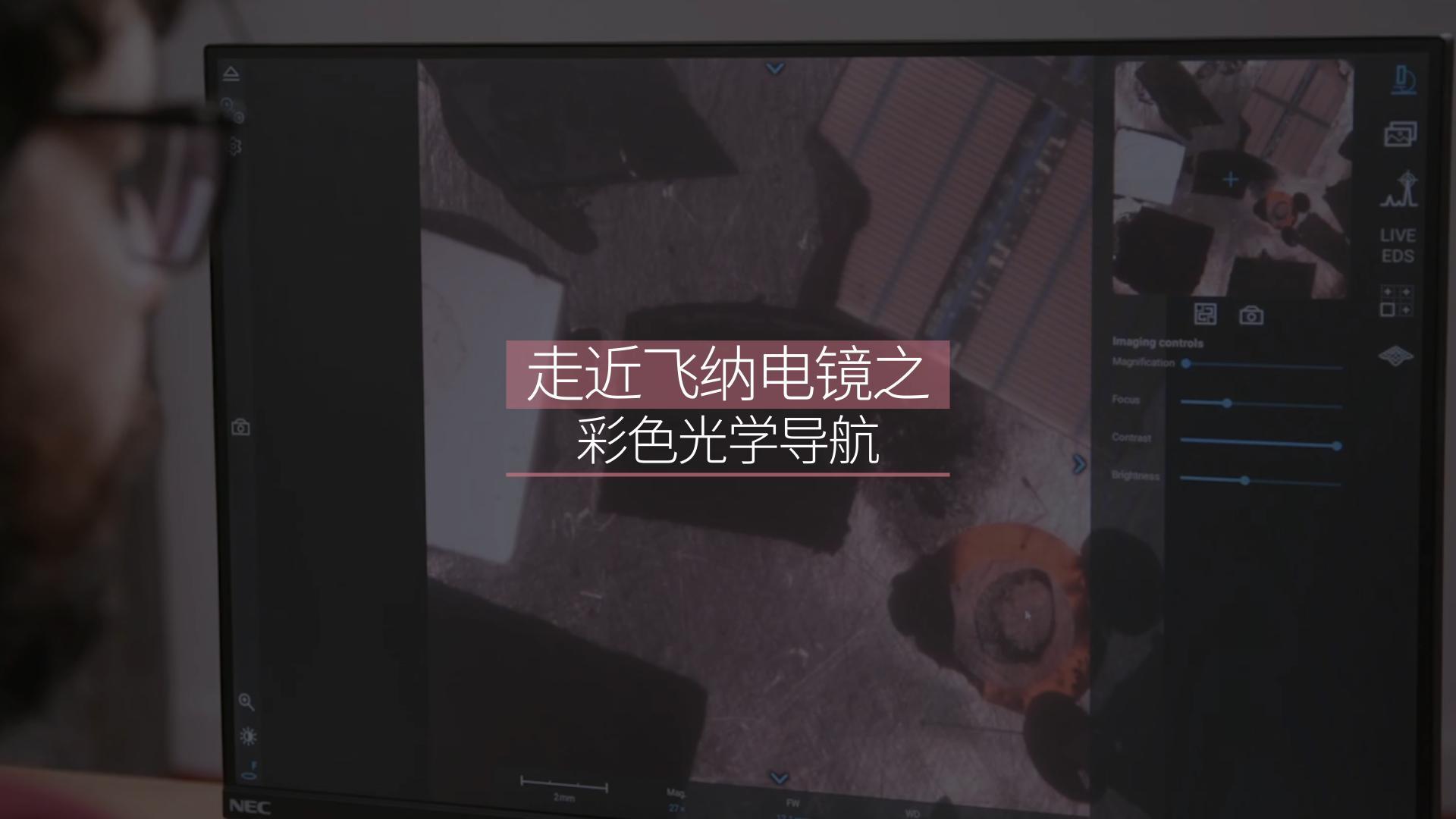

Color navigation camera

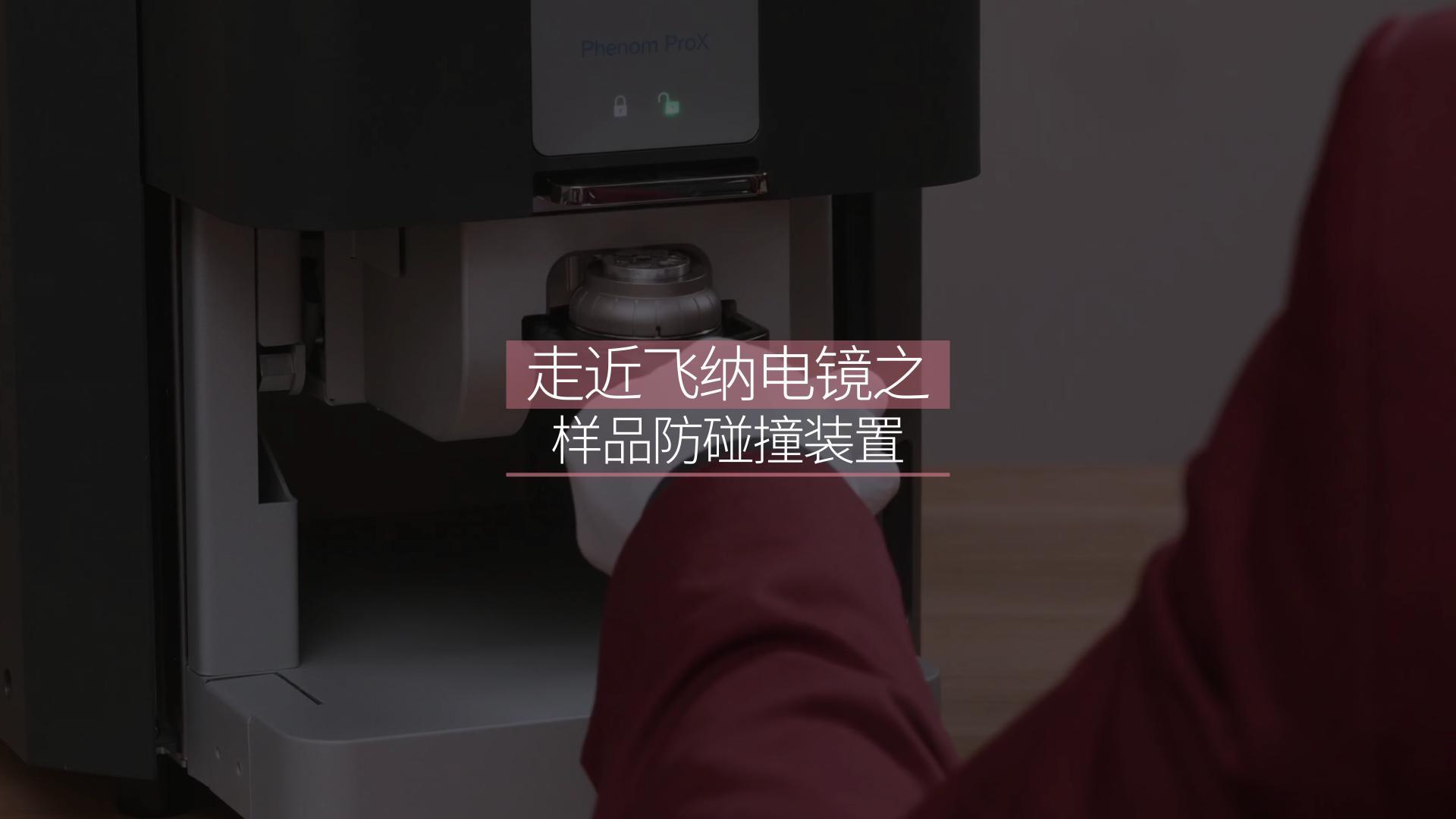

Loading samples

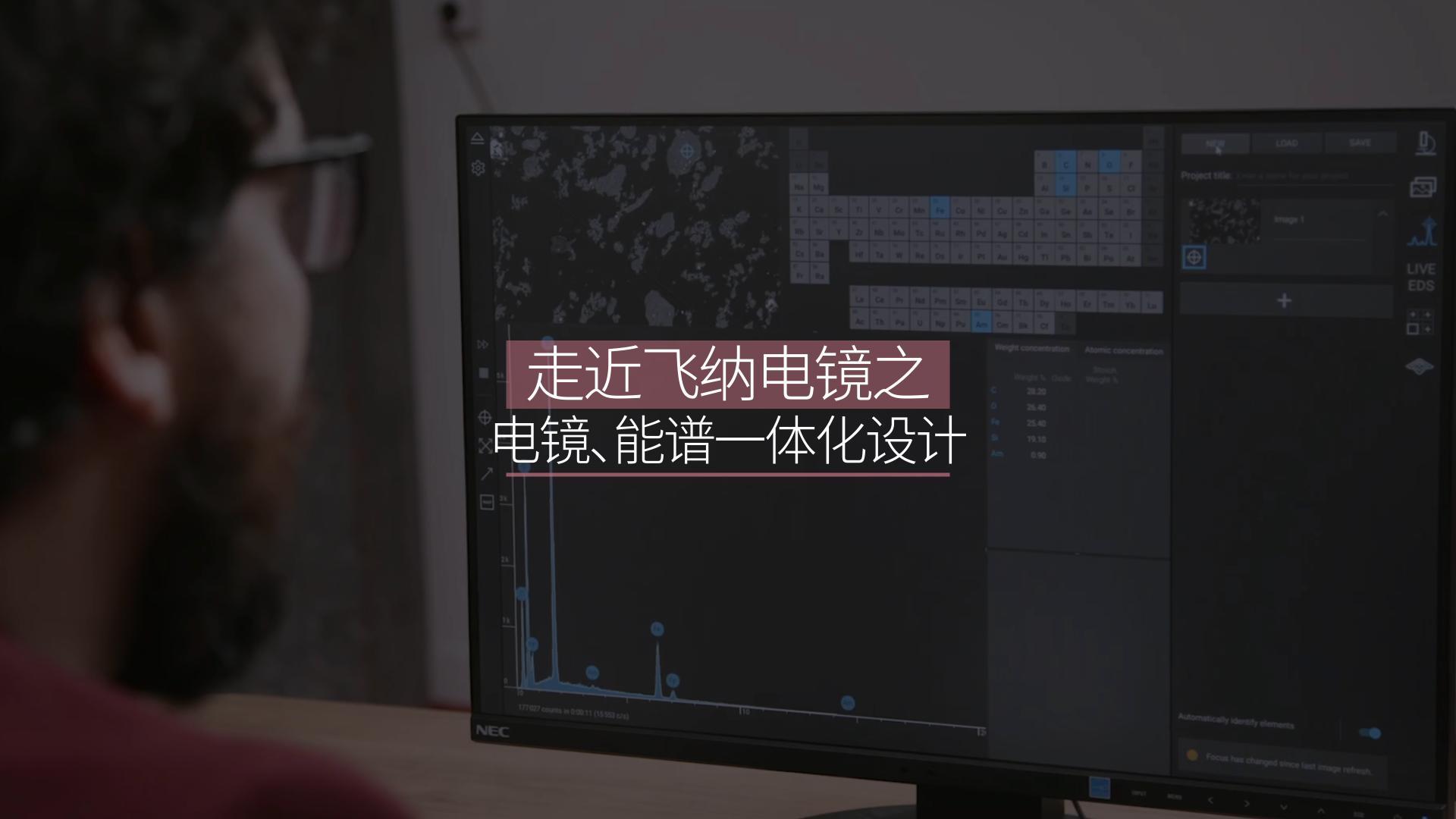

Desktop SEM with EDS
