Pharmaceutical Packaging Materials
Life Sciences
Semiconductor Metallic materials Lithium Battery Life Sciences Polymeric Materials Humanities Functional materials Industrial Manufacturing
Pharmaceutical Packaging Materials
Medicine Pharmaceutical Packaging Materials Microbiology Medical Devices Biomaterials Biology
PDF Download
Phenom Desktop SEM
Scanning Electron Microscope

Pharmaceutical packaging materials come into direct contact with medicines, and some may require long-term drug storage. Therefore, the compatibility of pharmaceutical packaging materials with drugs has always been a concern. Studying the compatibility of packaging materials helps ensure the effectiveness and stability of drugs, further reducing safety risks.

Excellent low accelerating voltage performance
Excellent low accelerating voltage performance

Rich surface details, suitable for characterizing and observing surface morphology with shallow erosion.

Fine images with high resolution
Fine images with high resolution

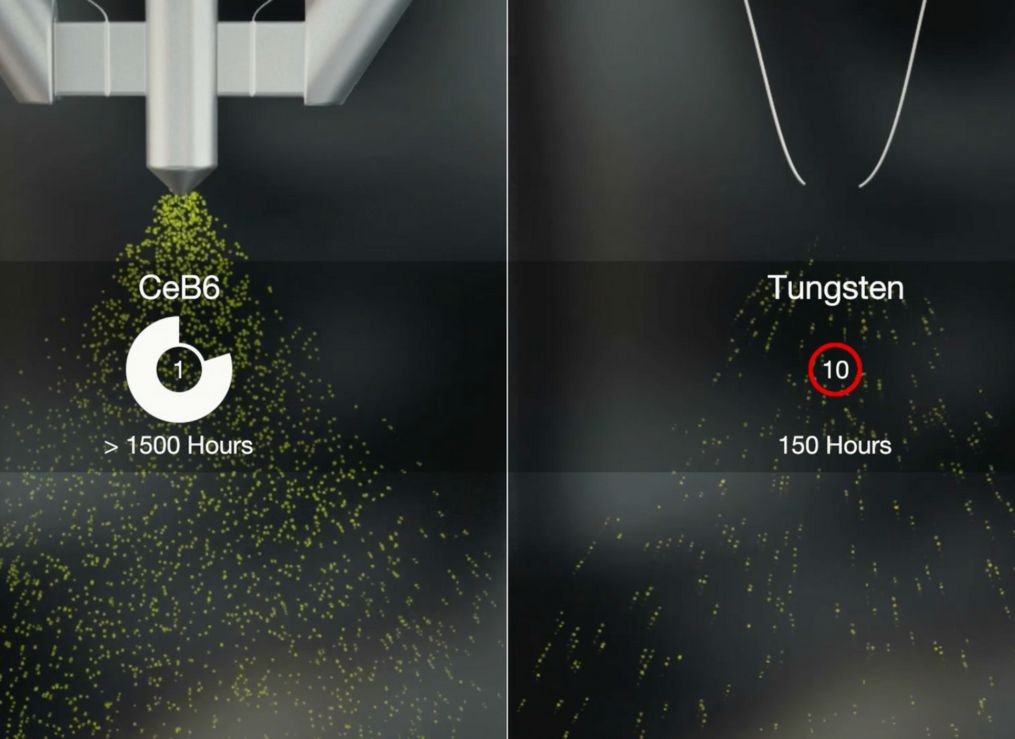

Achieved using a high-brightness CeB6 filament, providing the best-level image resolution and optimal imaging quality (signal-to-noise ratio), facilitating the observation of small erosion structures.

Easy operation
Easy operation

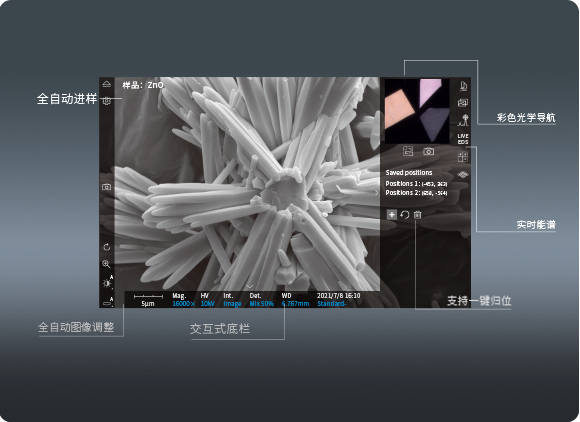

Through automation, it reduces the complexity of operation and is suitable for users of different experience levels.

Immunity to vibrations and magnetic fields
Immunity to vibrations and magnetic fields

Can be flexibly placed in complex environments such as production lines and factories.

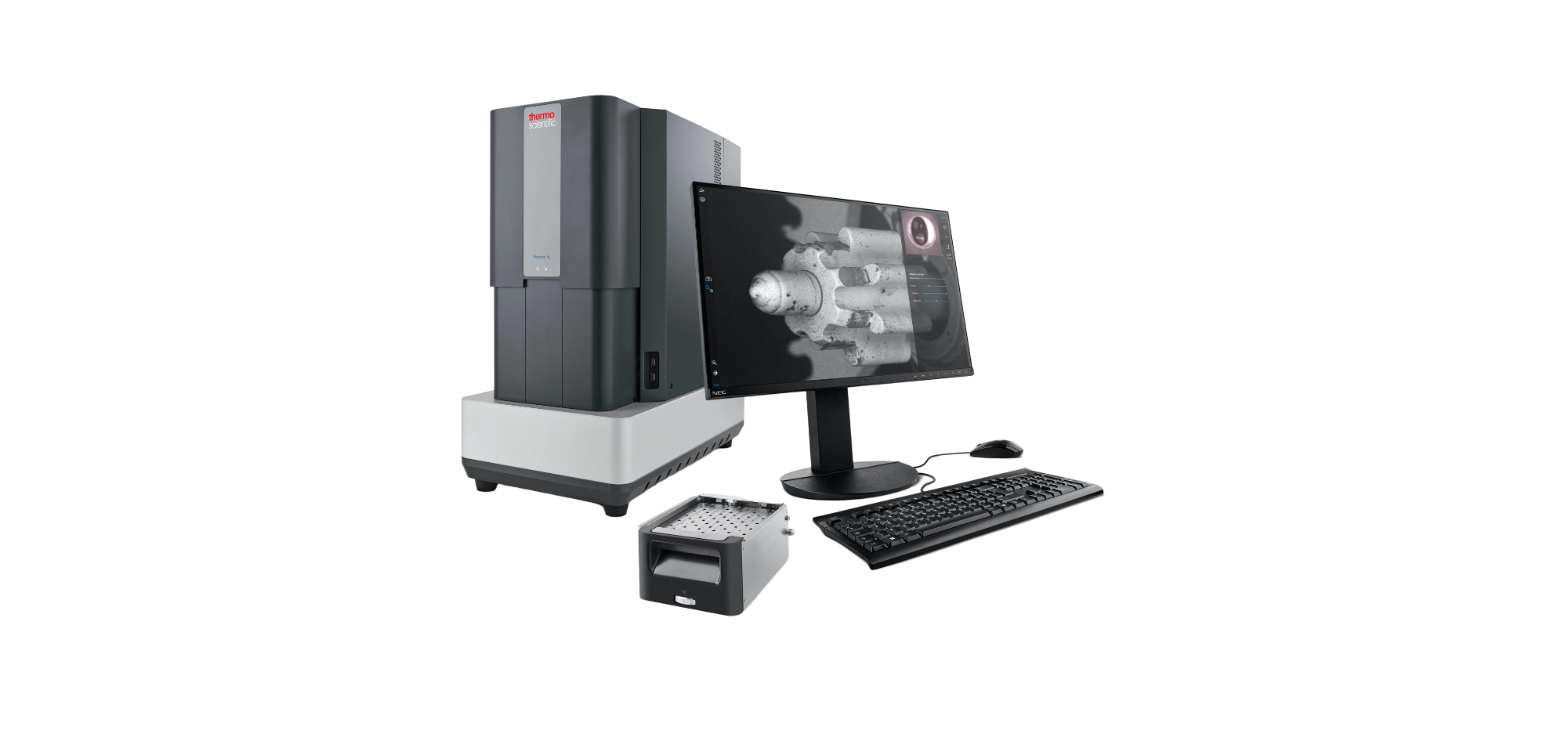

Phenom Desktop SEM
SEM Image

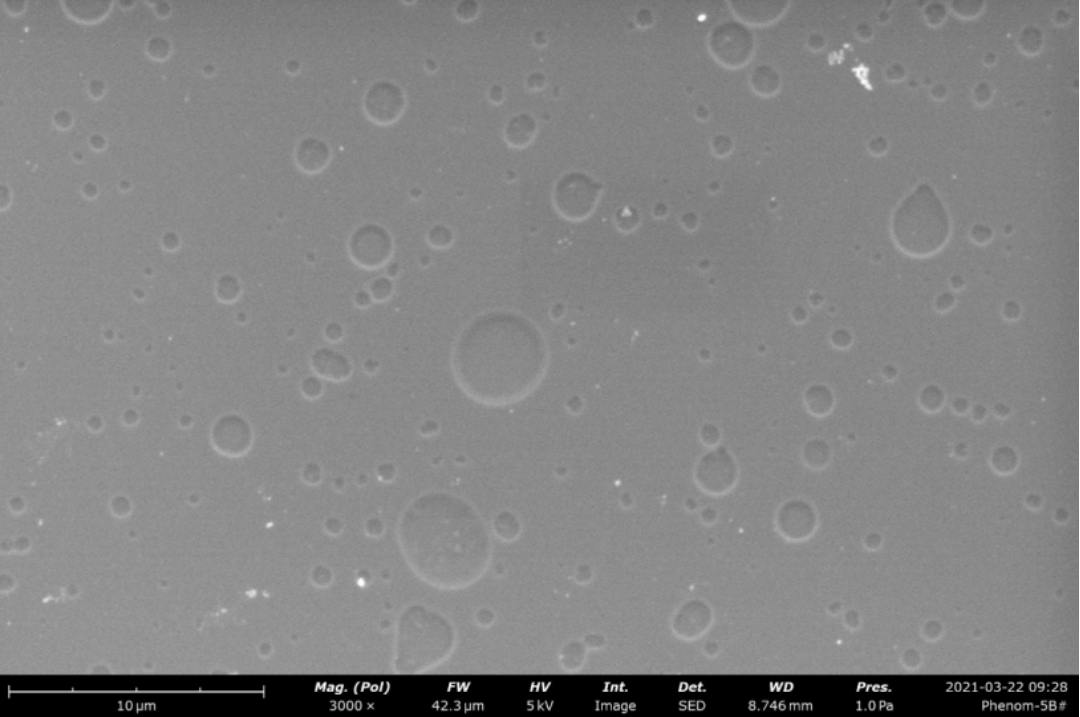

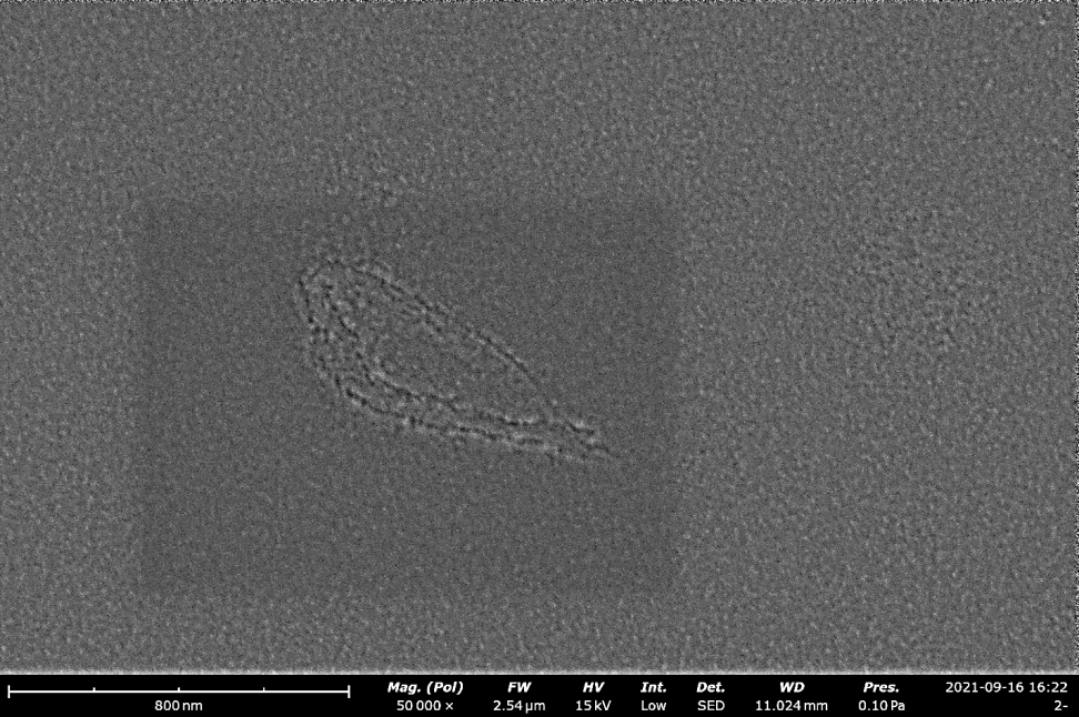

Low Borosilicate Glass Erosion Mode
Low Borosilicate Glass Erosion Mode

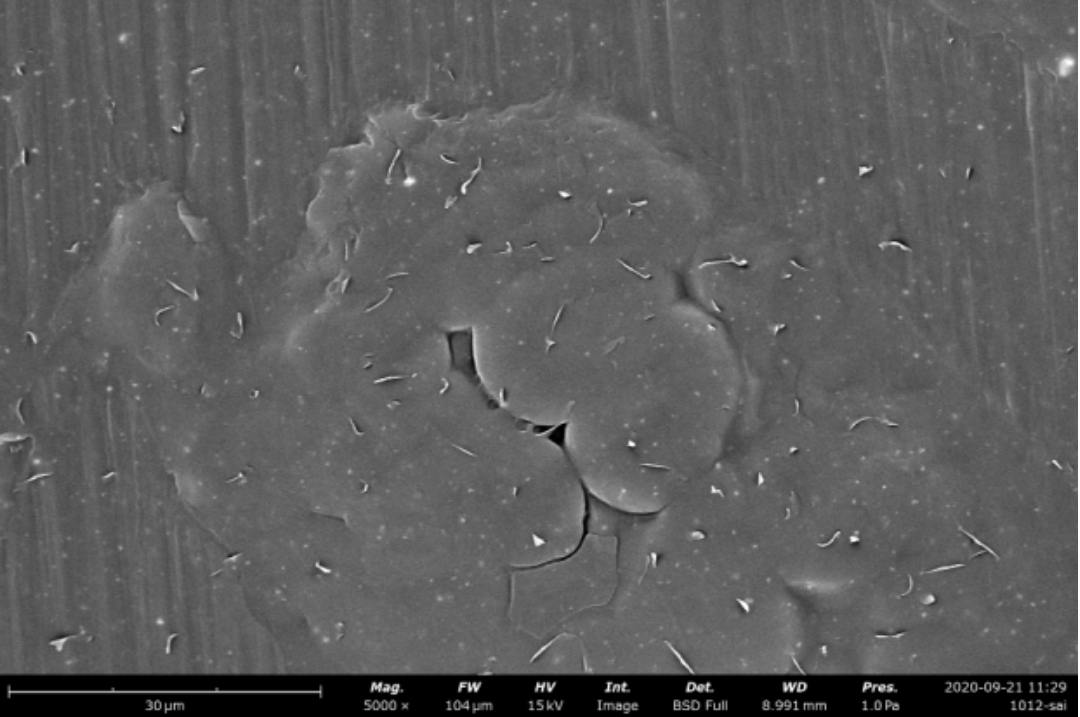

Dropper Plastic Pharmaceutical Packaging Materials
Dropper Plastic Pharmaceutical Packaging Materials

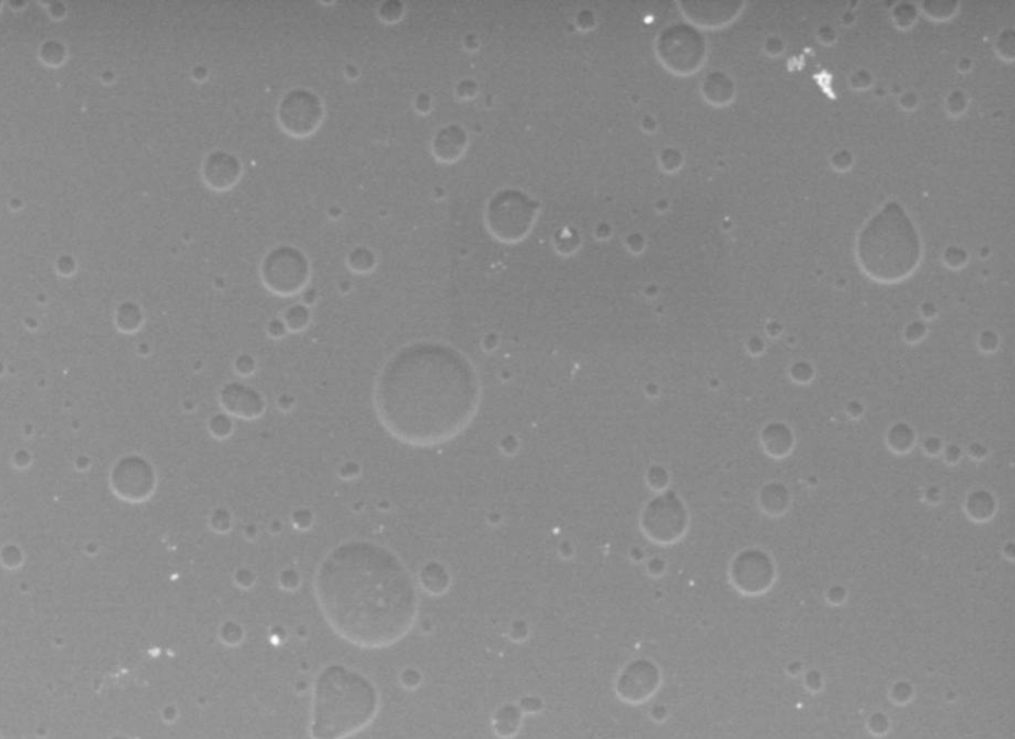

High Borosilicate Glass Bottle Erosion
High Borosilicate Glass Bottle Erosion

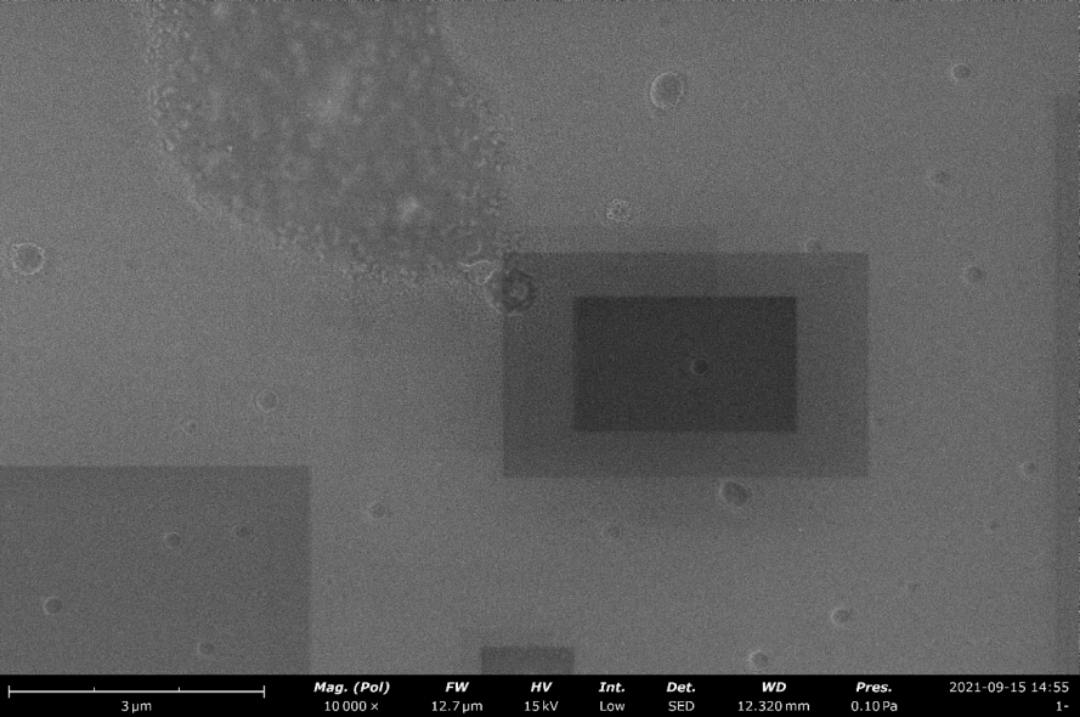

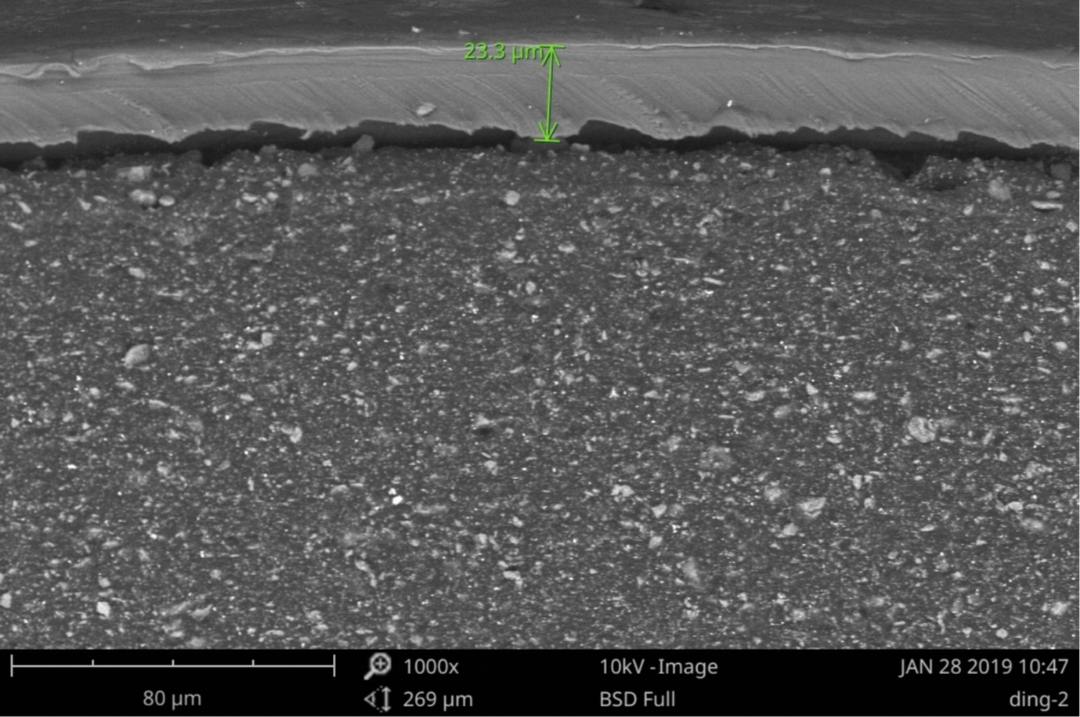

Measurement of Stopper Coating Thickness
Measurement of Stopper Coating Thickness
Medium Borosilicate Glass Erosion Mode
Medium Borosilicate Glass Erosion Mode
Industry News
Industry dynamics
2024 复纳科技优秀论文大赛启动！现金大奖等你来拿
News·2024-01-04

2024 复纳科技优秀论文大赛启动！现金大奖等你来拿
Application Cases
应用案例
玻璃瓶内表面侵蚀及脱片

玻璃瓶内表面发生侵蚀扫描电镜图

玻璃瓶内表面侵蚀及脱片

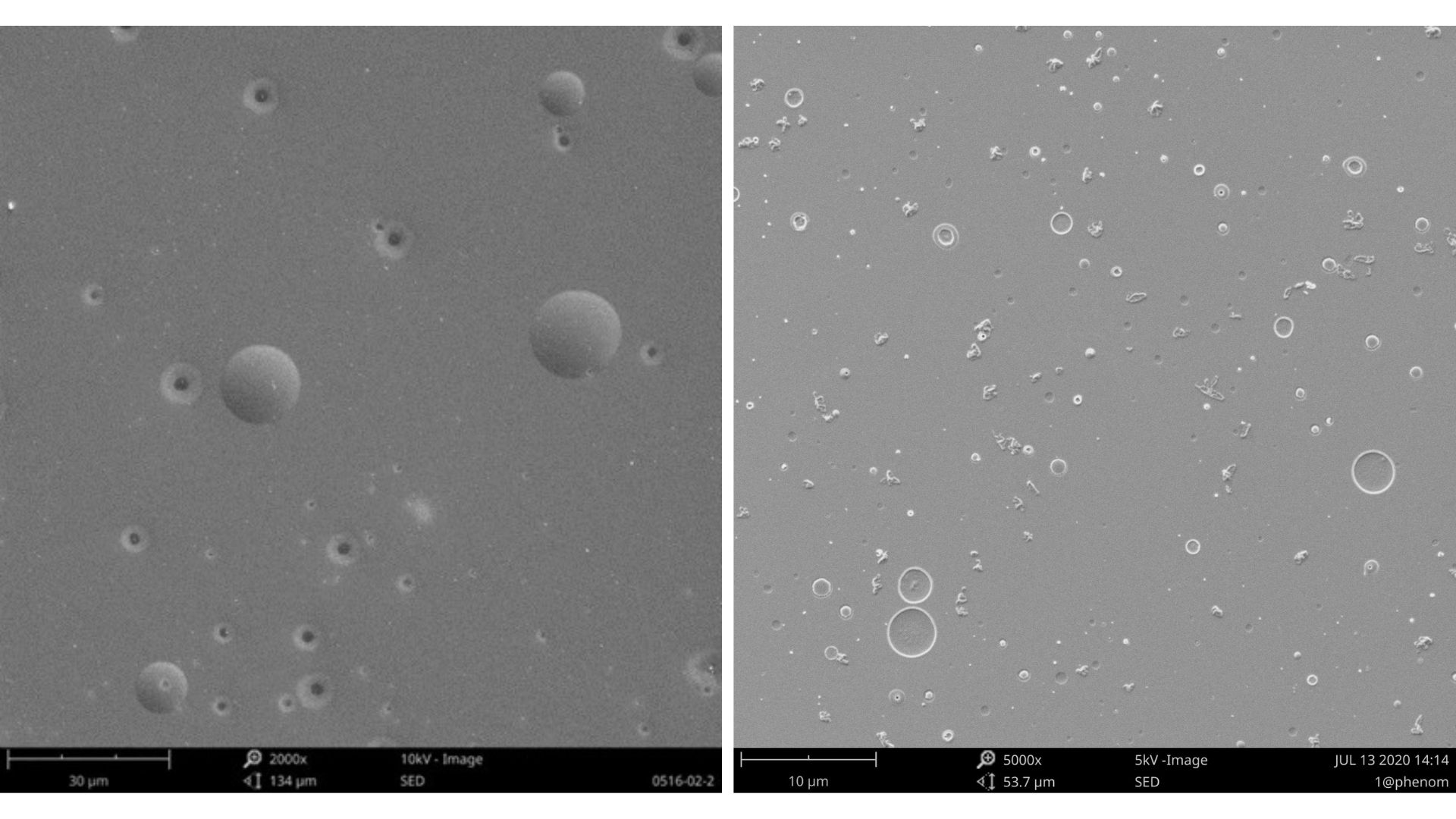

扫描电镜主要对玻璃瓶的内表面侵蚀及脱片进行观察，同时也可以对药液过滤物进行分析。利用飞纳台式扫描电镜对玻璃瓶的表面进行观察，如图所示，左图为药液侵蚀的玻璃瓶内表面，右图为侵蚀时间较长的玻璃瓶内表面，我们可以看到由于药液和玻璃瓶发生反应，光滑的内表面发生侵蚀，长时间的侵蚀会导致大面积脱片。这些反应后药液一旦注射入患者的身体内，会对患者的健康造成不良的影响。

分析药液不溶物过滤

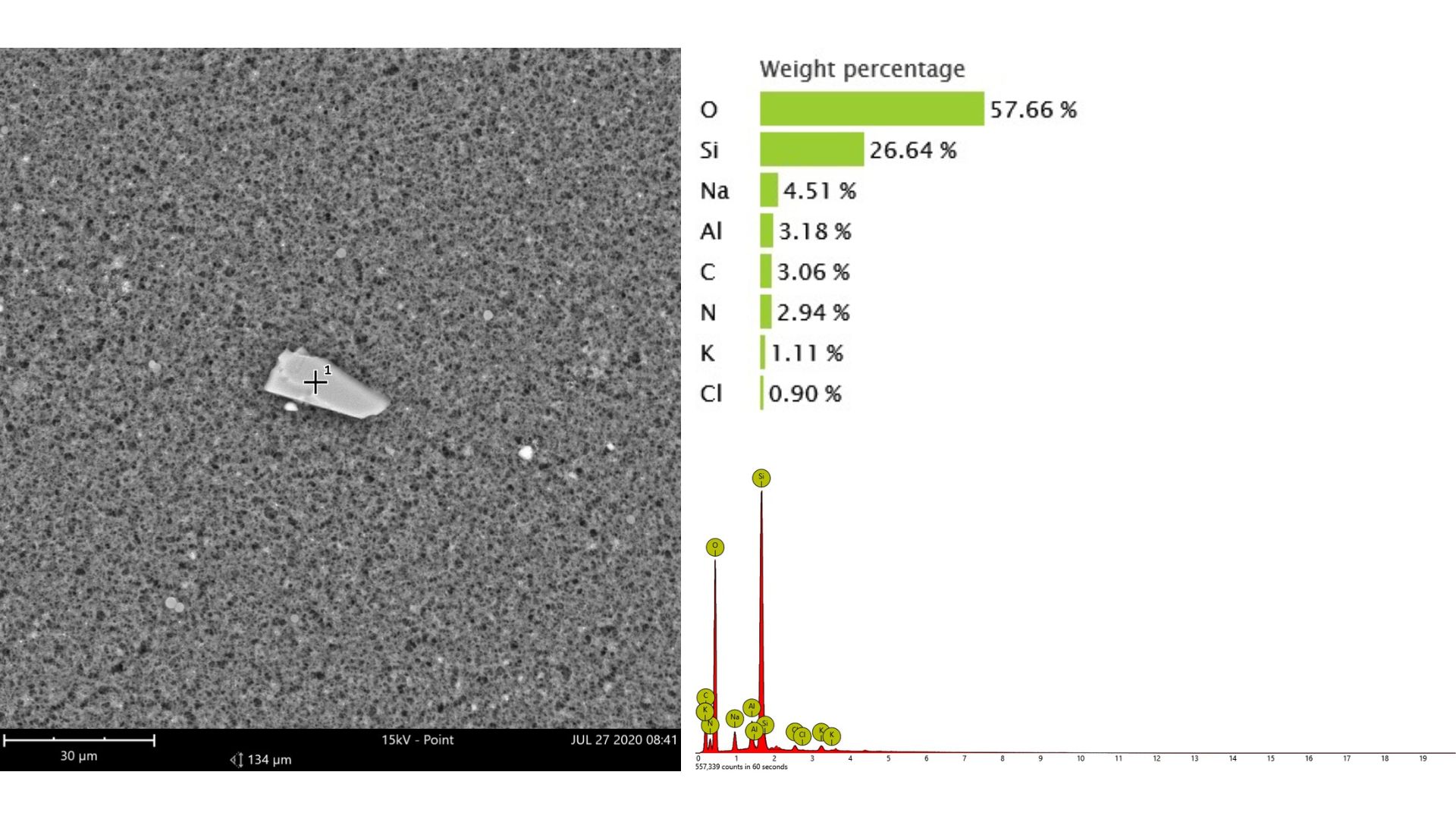

采用直径为 220nm 的滤膜过滤玻璃瓶药液，过滤干燥后对滤膜进行分析，可以看到滤膜表面有过滤下来的颗粒物，尺寸大多在 10μm 以下。对颗粒物进行能谱分析，含有 C, N, O, Si, Al, Na, K, Cl 等元素。推断颗粒物为玻璃瓶打开时破碎玻璃进入药液。

分析药液不溶物过滤

对颗粒物进行能谱分析

Phenom ProX Desktop SEM with EDS
Phenom ProX Desktop SEM with EDS

Phenom XL G2 Desktop SEM
Phenom XL G2 Desktop SEM

Phenom Pro G6 Desktop SEM
Phenom Pro G6 Desktop SEM

Phenom Pure Desktop SEM
Phenom Pure Desktop SEM
